Remove/install fiber optic cable for the Media Oriented System Transport (MOST) - AR82.60-P-0001TJ
MODEL 211.0 /2 up to 1.6.08 except CODE (809) Model year 2009 between audio gateway control unit and radio/COMAND
Shown on model 211.0 with code (527) COMAND APS (with navigation system)

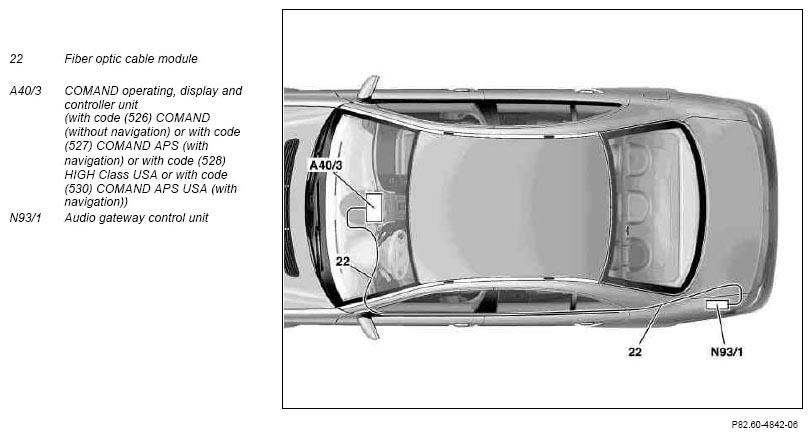

Fig 1: Identifying Fiber Optic Cable Module, COMAND Operating, Display And Controller Unit & Audio Gateway Control Unit

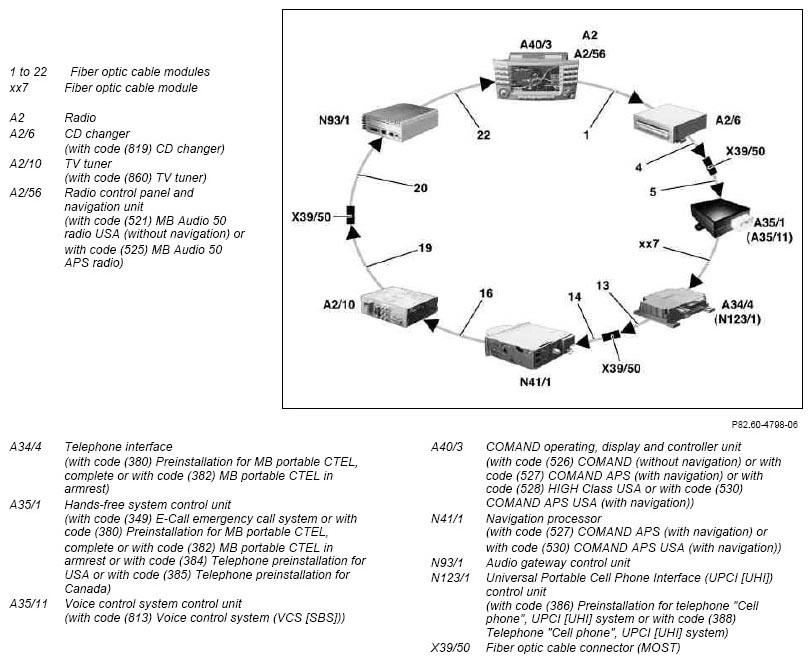

Ring sequence of the fiber optic cable for the Media Oriented System Transport (MOST), shown for maximum equipment
| Remove/install | |||
| Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST) | AH82.60-P-0001-06T | ||
| 1.1 | Remove radio (A2) or radio control panel and navigation unit (A2/56) | Vehicles with code (523) MB Audio 20 radio or with code (521) MB Audio 50 radio USA (without navigation) or code (525) MB Audio 50 APS radio |
AR82.60-P-7502T |
| 1.2 | Remove the COMAND operating, display and controller unit (A40/3) | Vehicles with code (526) COMAND (without navigation) or code (527) COMAND APS (with navigation). | AR82.85-P-1000T |
| 2 | Remove left front floor covering | AR68.20-P-2050T | |
| 3 | Remove cargo retainers in left rear legroom | ||
| 4 | Remove left rear door sill molding | ||
| 5 | Remove rear seat cushion | Model 211.0 without code (287) Through-loading feature | AR91.12-P-1020T |
| Model 211.0 with CODE (287) Through-loading feature | AR91.12-P-1020TA | ||
| Model 211.2 | AR91.12-P-1020TB | ||
| 6.1 | Remove side bolster and cover next to left rear seat backrest | Model 211.0 | |
| 6.2 | Remove side paneling on left side of rear compartment | Model 211.2 |
AR68.30-P-4780T |
| 7 | Fully open left front and left rear cable ducts | ||
| 8 | Remove fiber optic cable module for Media Oriented System Transport (MOST) | AR82.60-P-0001-01TJ | |
| Notes on avoiding damage to fiber optic cables during repair work | AH82.60-P-0001-05AK | ||
| 9 | Install in the reverse order | ||
| 10 | Connect STAR DIAGNOSIS, read out fault memory and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 11 | Carry out start-up and function test |
