Remove/install fiber optic cable for the Media Oriented System Transport (MOST) - AR82.60-P-0001TD
MODEL 211.0 /2 up to 1.6.08 except CODE (809) Model year 2009 with CODE (349) E-call emergency call system with CODE (380) Preinstallation for MB telephone "Cell phone", complete with CODE (382) MB telephone "Cell phone" in armrest with CODE (384) Telephone preinstallation for USA with CODE (385) Telephone preinstallation for Canada with CODE (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system with CODE (388) Telephone "Cell p hone", UPCI [UHI] system with CODE (813) Voice control system (VCS [SBS]) between hands-free system/VCS [SBS] control unit and cell phone control unit

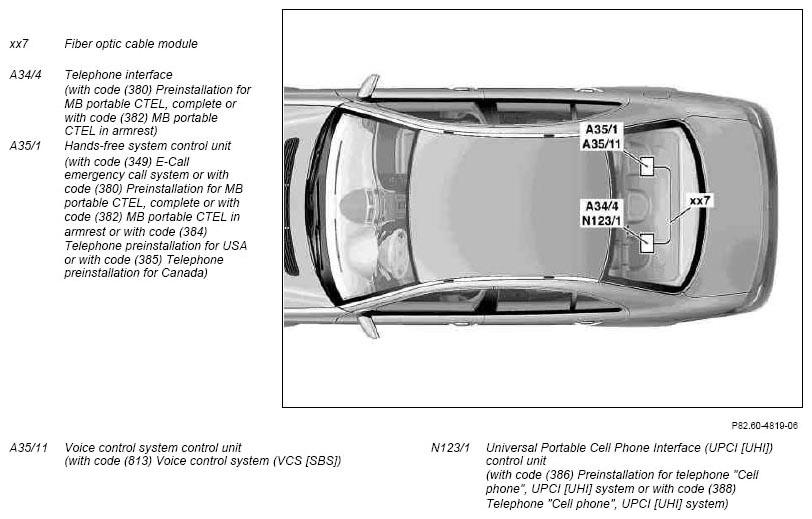

Shown on model 211.0

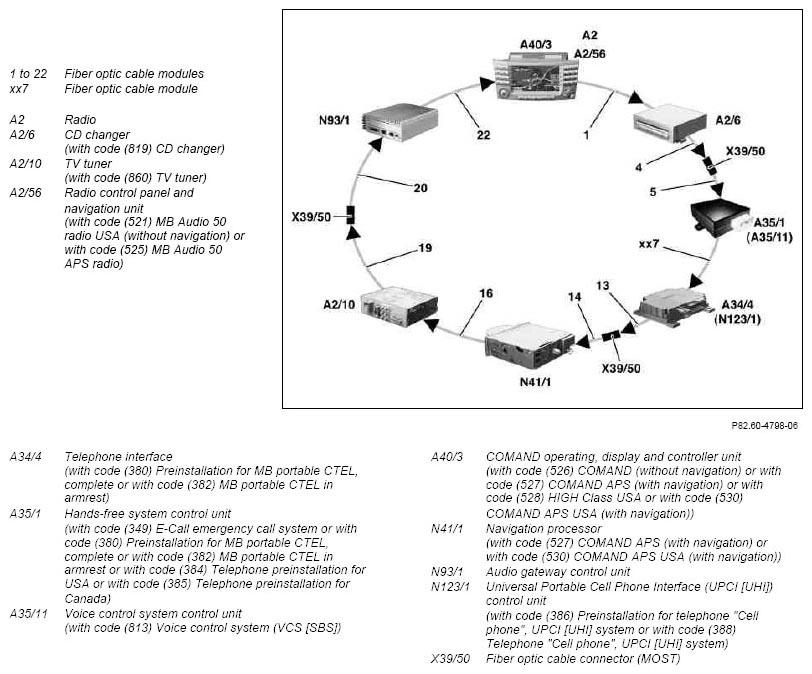

Ring sequence of the fiber optic cable for the Media Oriented System Transport (MOST), shown for maximum equipment
| Remove/install | |||
| Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST) | AH82.60-P-0001-06T | ||
| 1 | Remove cover above telephone control unit in luggage compartment | Model 211.0 | AR82.70-P-0003T |
| Model 211.2 | AR82.70-P-0003TA | ||
| 2 | Remove fiber optic cable module for Media Oriented System Transport (MOST) | AR82.60-P-0001-01TD | |
| Notes on avoiding damage to fiber optic cables during repair work | AH82.60-P-0001-05AK | ||
| 3 | Install in the reverse order | ||
| 4 | Connect STAR DIAGNOSIS, read out fault memory and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 5 | Carry out start-up and function test |
