Remove/install fiber optic cable for the Media Oriented System Transport (MOST) - AR82.60-P-0001TC
MODEL 211.0 /2 up to 1.6.08 except CODE (809) Model year 2009 with CODE (349) E-call emergency call system with CODE (380) Preinstallation for MB telephone "Cell phone", complete with CODE (382) MB telephone "Cell phone" in armrest with CODE (384) Telephone preinstallation for USA with CODE (385) Telephone preinstallation for Canada with CODE (813) Voice control system (VCS [SBS]) between fiber optic cable connector (MOST) and hands-free system/VCS [SBS] control unit
Shown on model 211.0

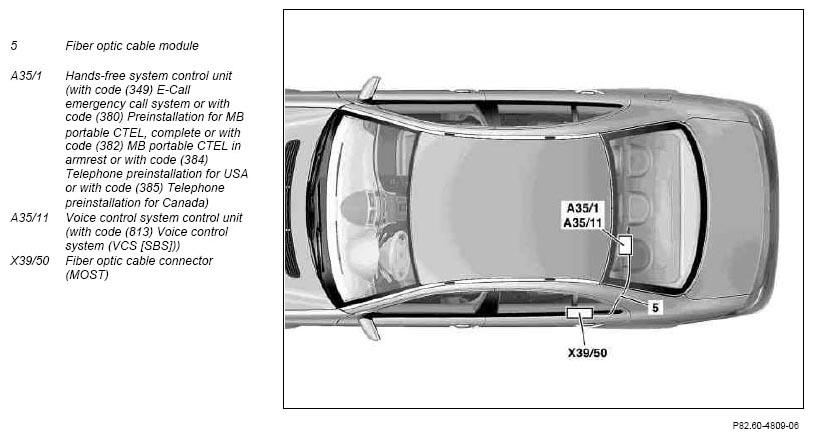

Fig 1: Identifying Fiber Optic Cable Module, Hands-Free System Control Unit, Voice Control System Control Unit & Fiber Optic Cable Connector

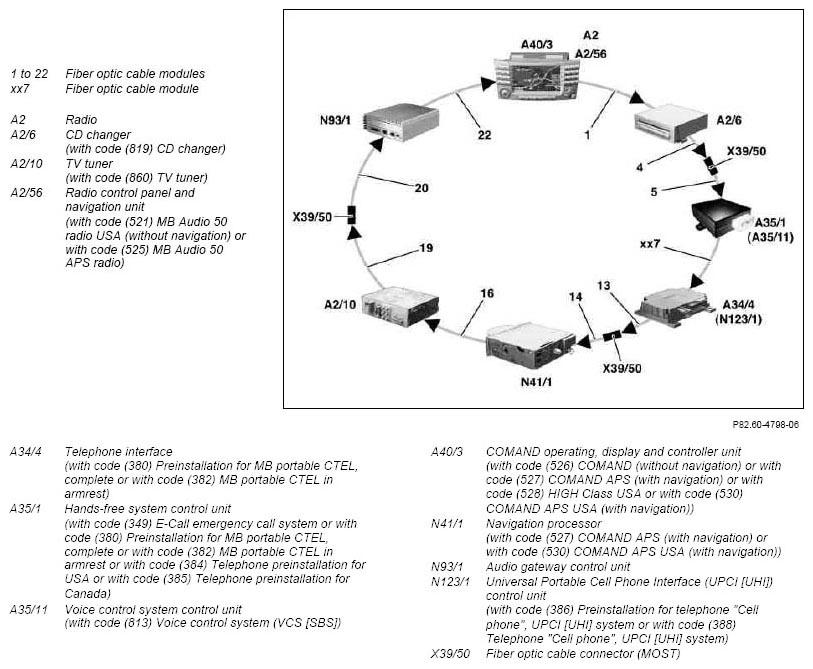

Ring sequence of the fiber optic cable for the Media Oriented System Transport (MOST), shown for maximum equipment
| Remove/install | |||
| Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST) | AH82.60-P-0001-06T | ||
| 1 | Remove cargo retainers in left rear legroom | ||
| 2 | Remove left rear door sill molding | ||
| 3 | Remove rear seat cushion | Model 211.0 without code (287) Through-loading feature | AR91.12-P-1020T |
| Model 211.0 with CODE (287) Through-loading feature | AR91.12-P-1020TA | ||
| Model 211.2 | AR91.12-P-1020TB | ||
| 4.1 | Remove side bolster and cover next to left rear seat backrest | Model 211.0 | |
| 4.2 | Remove side paneling on left side of rear compartment | Model 211.2 |
AR68.30-P-4780T |
| 5 | Remove cover above telephone control unit in luggage compartment | Model 211.0 | AR82.70-P-0003T |
| Model 211.2 | AR82.70-P-0003TA | ||
| 6 | Fully open left rear cable duct | ||
| 7 | Remove fiber optic cable module for Media Oriented System Transport (MOST) | AR82.60-P-0001-01TC | |
| Notes on avoiding damage to fiber optic cables during repair work | AH82.60-P-0001-05AK | ||
| 8 | Install in the reverse order | ||
| 9 | Connect STAR DIAGNOSIS, read out fault memory and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 10 | Carry out start-up and function test |
