Remove/install fiber optic cable for the Media Oriented System Transport (MOST) - AR82.60-P-0001TB

MODEL 211.0 /2 up to 1.6.08 except CODE (809) Model year 2009 with CODE (819) CD changer between CD changer and fiber optic cable connector (MOST)

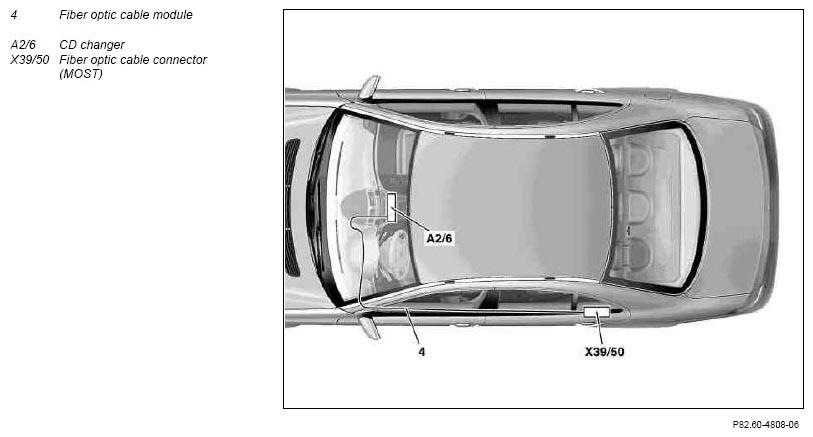

Fig 1: Identifying Fiber Optic Cable Module, CD Changer & Fiber Optic Cable Connector (MOST)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

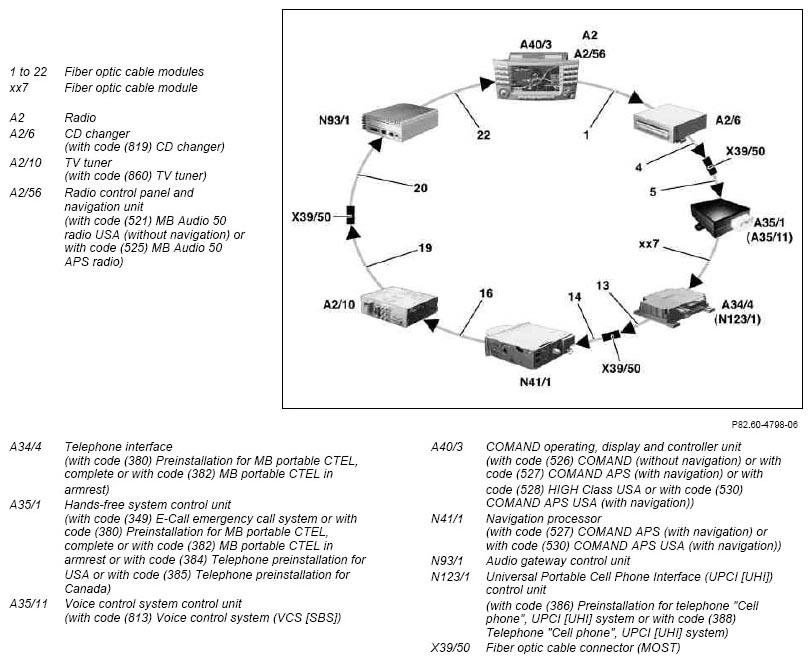

Ring sequence of the fiber optic cable for the Media Oriented System Transport (MOST), shown for maximum equipment

Fig 2: View Of Ring Sequence Of Fiber Optic Cable For Media Oriented System Transport

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST)		AH82.60-P-0001-06T
1	Remove CD changer (A2/6)	Do not remove CD changer (A2/6) from holder.	AR82.64-P-7508T
2	Remove left front floor covering		AR68.20-P-2050T
3	Remove cargo retainers in left rear legroom
4	Remove left rear door sill molding
5	Remove rear seat cushion	Model 211.0 without code (287) Through-loading feature	AR91.12-P-1020T
		Model 211.0 with CODE (287) Through-loading feature	AR91.12-P-1020TA
		Model 211.2	AR91.12-P-1020TB
6.1	Remove side bolster cover next to left rear seat backrest	Model 211.0
6.2	Remove side paneling on left side of rear compartment	Model 211.2 Only detach enough side paneling to allow cable duct in left rear to be fully opened.	AR68.30-P-4780T
7	Fully open left front and left rear cable ducts
8	Remove fiber optic cable module for Media Oriented System Transport (MOST)		AR82.60-P-0001-01TB
	Notes on avoiding damage to fiber optic cables during repair work		AH82.60-P-0001-05AK
9	Install in the reverse order
10	Connect STAR DIAGNOSIS, read out fault memory and erase if necessary	Reconfigure MOST ring and perform "Restart of optical ring".
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
11	Carry out start-up and function test
