Remove/install fiber optic cable for the Media Oriented System Transport (MOST) - AR82.60-P-0001TA

MODEL 211.0 /2 up to 1.6.08 except CODE (809) Model year 2009 with CODE (819) CD changer between radio/COMAND and CD changer

Shown on model 211.0 with code 527 COMAND APS (with navigation)

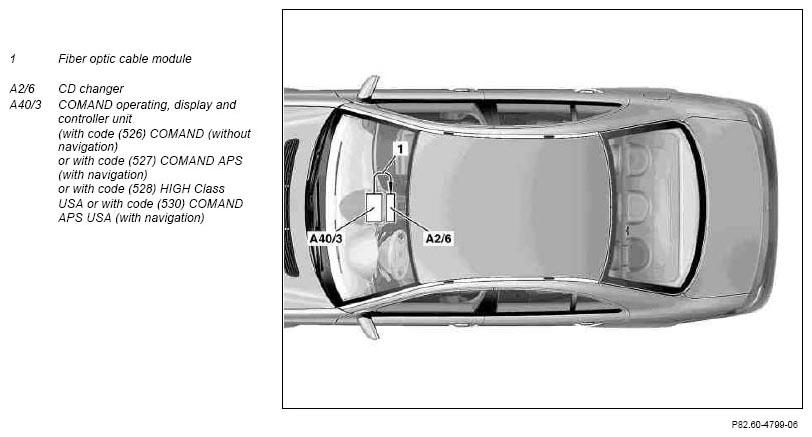

Fig 1: Identifying Fiber Optic Cable Module, CD Changer & COMAND Operating, Display And Controller Unit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

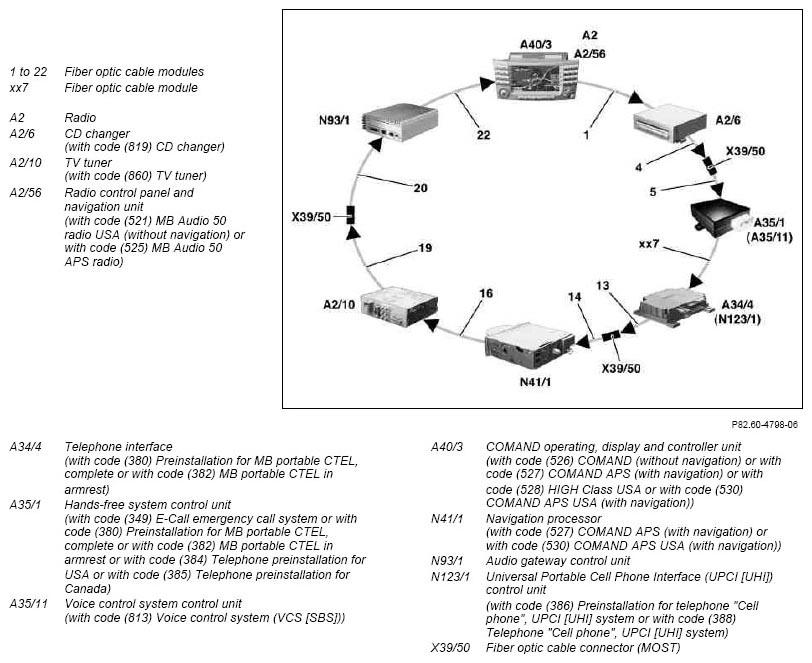

Ring sequence of the fiber optic cable for the Media Oriented System Transport (MOST), shown for maximum equipment

Fig 2: View Of Ring Sequence Of Fiber Optic Cable For Media Oriented System Transport

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST)		AH82.60-P-0001-06T
1.1	Remove radio (A2) or radio control panel and navigation unit (A2/56)	Vehicles with code (523) MB Audio 20 radio or with code (521) MB Audio 50 radio USA (without navigation) or code (525) MB Audio 50 APS radio	AR82.60-P-7502T
1.2	Remove the COMAND operating, display and controller unit (A40/3)	Vehicles with code (526) COMAND (without navigation) or code (527) COMAND APS (with navigation).	AR82.85-P-1000T
2	Remove CD changer (A2/6)	Do not remove CD changer (A2/6) from holder.	AR82.64-P-7508T
3	Remove fiber optic cable module for Media Oriented System Transport (MOST)		AR82.60-P-0001-01TA
	Notes on avoiding damage to fiber optic cables during repair work		AH82.60-P-0001-05AK
4	Install in the reverse order
5	Connect STAR DIAGNOSIS, read out fault memory and erase if necessary	Reconfigure MOST ring and perform "Restart of optical ring".
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
6	Carry out start-up and function test
