Remove/install electric headlamp range adjustment motor - AR82.10-P-4082T

MODEL 211.0/ 2/ 6

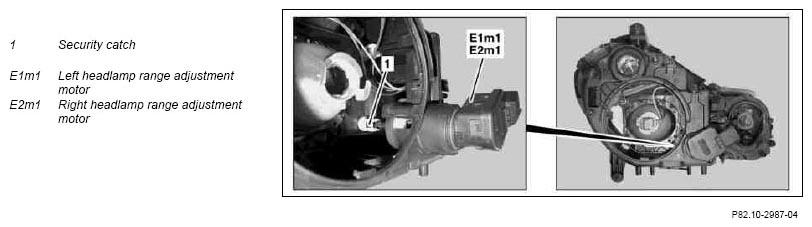

Shown on removed left front lamp unit

Fig 1: Identifying Headlamp Range Adjustment Motors & Security Catch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove left front lamp unit or right front lamp unit	When removing left front lamp unit or right front lamp unit.	AR82.10-P-4730TA
		When removing left front lamp unit and right front lamp unit.	AR82.10-P-4730T
2	Detach low beam cover
3	Turn left headlamp range adjustment motor (E1m1) or right headlamp range adjustment motor (E2m1) to the left and pull out a short distance
4	Pull back lock tab (1) using an appropriate tool and unclip ball head from left headlamp range adjustment motor (E1m1) or right headlamp range adjustment motor (E2m1)	Carefully pull back lock tab (1) to avoid damaging the lock tab (1).
5	Remove left headlamp range adjustment motor (E1m1) or right headlamp range adjustment motor (E2m1)
6	Install in the reverse order
7	Check adjustment of left front lamp unit and right front lamp unit, correct if necessary
	Check and correct headlamp setting		AP82.10-P-8260T
