Remove/install covering for radio display - AR82.60-P-7721T

MODEL 211.0 /2 /6 Audio 20 CC only

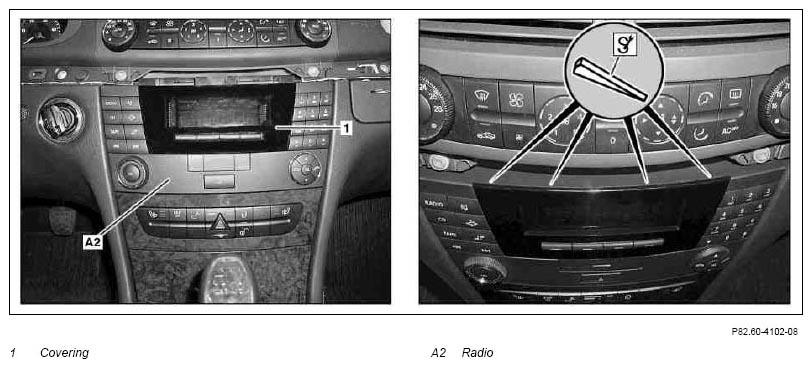

Fig 1: Removing/Installing Radio Display Covering

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

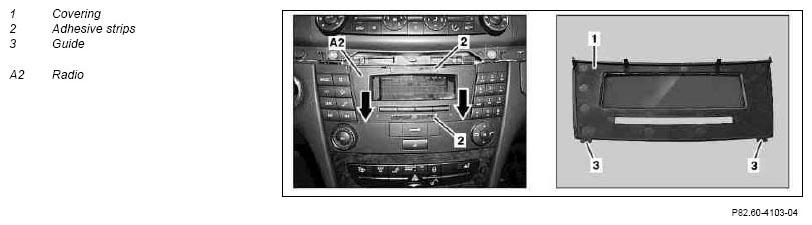

Fig 2: Identifying Radio, Covering, Adhesive Strips And Guide

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove right trim strip		AR68.10-P-1180T
2	Unclip covering (1) at top using long wedge	Carefully unclip covering (1), to avoid damaging the radio (A2).
			Figure
3	Remove covering (1) upwards out of the fixtures (arrows)
4	Install in the reverse order

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
