Remove/install cover for cassette holder in radio - AR82.61-P-0110T

MODEL 211 with CODE (525) MB Audio 50 APS radio with cassette holder

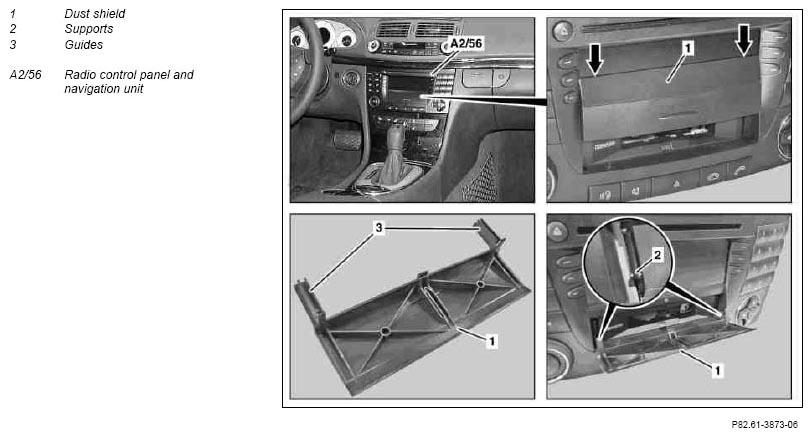

Fig 1: Identifying Components Of Cover For Cassette Holder In Radio

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Press "Eject" button	Dust shield (1) moves to upper position.
2	Detach dust shield (1) at top (arrows) by hand and fold in towards rear	Detach dust shield (1) carefully as display of radio control panel and navigation unit (A2/56) can be damaged.
3	Pull guides (3) of dust shield (1) out of mounts (2) and remove dust shield (1)
4	Install in the reverse order
