Remove/install center overhead control panel control unit - AR82.20-P-1105T

MODEL 211.0 with CODE (413) Panoramic sliding roof

MODEL 211.0 with CODE (413) Panoramic sliding roof with CODE (419) Solar module for panoramic roof

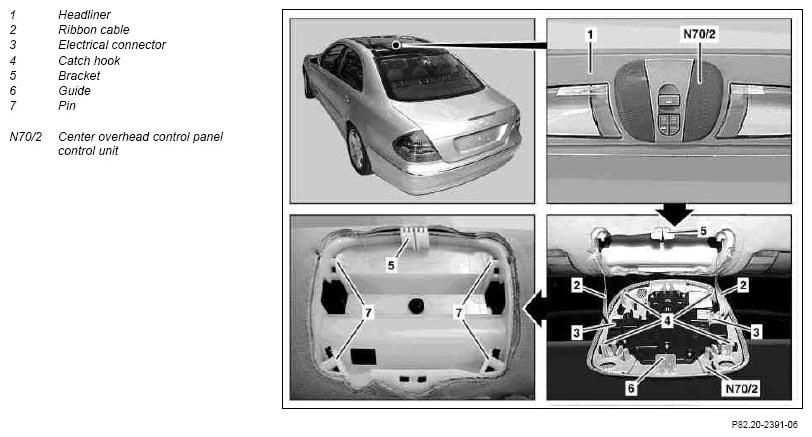

Fig 1: Identifying Center Overhead Control Panel Control Unit Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1.1	Switch off the ignition and remove the transmitter key from the EIS control unit	On vehicles without code (889) Keyless Go
1.2	Switch off ignition, remove transmitter key from transmission range of vehicle	On vehicles with code (889) Keyless Go
2	Unclip center overhead control panel control unit (N70/2) out of headliner (1) using assembly wedge	Carefully unclip center overhead control panel control unit (N70/2), as the ribbon cables (2) could be damaged.
		Installation:  Insert guide (6) into holder (5) and ensure that catch hook (4) latches in journal (7).	Figure
3	Detach electrical connectors (3) and remove center overhead control panel control unit (N70/2)
4	Install in the reverse order
5	Perform a function test

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
