Remove/install center high-mounted stop lamp - AR82.10-P-5375T

MODEL 211.0

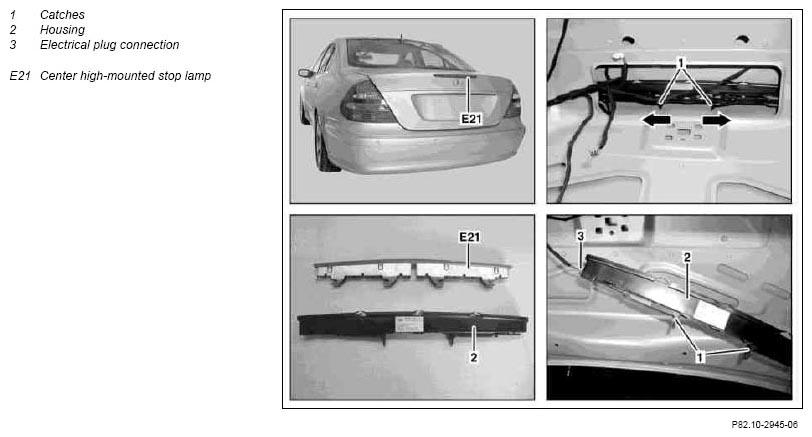

Fig 1: Identifying Center High-Mounted Stop Lamp Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove paneling at trunk lid	AR68.30-P-8150T
2	Slide catches (1) in direction of arrow and remove the casing (2) of the center high-mounted stop lamp (E21) out of the trunk lid until the electrical connector (3) is accessible
3	Separate electrical plug connection (3)
4	Unclip and remove center high-mounted stop lamp (E21) out of the trunk lid
5	Install in the reverse order
