Remove/install antenna splitter - AR82.70-P-8953TB
MODEL 211.0 /2 with CODE (494) USA version Emergency call system antenna splitter

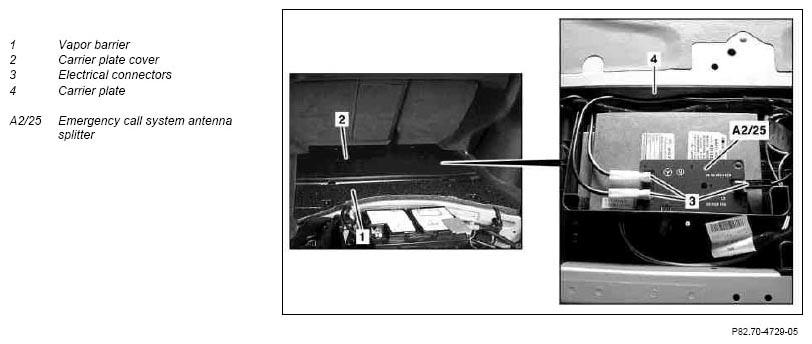

Shown on model 211.0
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Open luggage compartment | ||
| 2.1 | Remove vapor barrier (1) and cover of supporting plate (2) | Model 211.0 | |
| 2.2 | Remove front section of load compartment floor | Model 211.2 | AR68.20-P-4811T |
| 3 | Separate electrical connectors (3) | ||
| 4 | Unclip emergency call system antenna splitter (A2/25) from supporting plate (4) | ||
| 5 | Install in the reverse order |
