Remove/install Keyless Go antenna - AR82.62-P-8000TA

MODEL 211.0 with CODE (889) Keyless go Antenne Keyless-Go Kofferraum

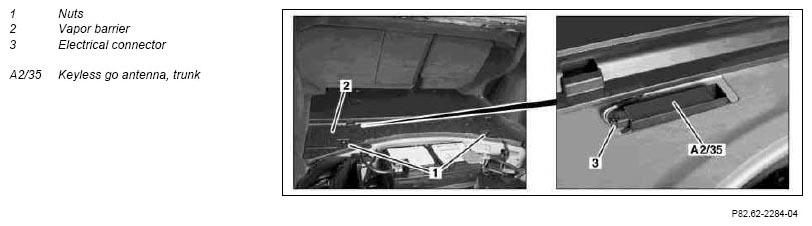

Fig 1: Identifying Keyless Go Antenna Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Undo nuts (1) and remove the vapor barrier (2) out of the luggage compartment
2	Separate electrical plug connection (3)
3	Unclip trunk Keyless Go antenna (A2/35) from luggage compartment floor using assembly wedge		Figure
4	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
