Remove/install Keyless Go antenna - AR82.62-P-8000T

MODEL 211.0 with CODE (889) Keyless go Antenne Sto fanger

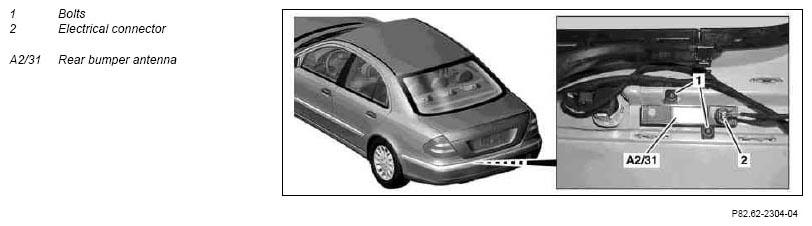

Fig 1: Identifying Rear Bumper Antenna, Electrical Connector & Bolts
G07502852Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

15.1.04 Disconnect ground cable on battery, connect
REMOVINGINSTALLING Remove/install
1 Remove bolts (1)
2 Unplug electrical connector (2) and remove rear bumper antenna (A2/31)
3 Install in the reverse order
