Remove and install bracket for portable CTEL - AR82.70-P-8918T
MODEL 211.0 /2 up to 1.6.08 except CODE (809) Model year 2009 with CODE (380) Preinstallation for MB telephone "Cell phone", complete with CODE (381) CP-Light telephone system with CODE (382) MB telephone "Cell phone" in armrest with CODE (383) CP-High telephone system with CODE (388) Telephone "Cell phone", UPCI [UHI] system
MODEL 211.6 up to 1.6.08 except CODE (809) Model year 2009 with CODE (380) Preinstallation for MB telephone "Cell phone", complete
Shown on equipment specification with "Cell phone"
| Remove/install | |||
| 1 | Press right release button (3) and open lid of telephone compartment (2) | ||
| 2 | Remove telephone handset or cell phone from cell phone/CTEL holder (1) | ||
| 3 | Remove bolts (4) | ||
| 4 | Press left release button (6) and open stowage box (5) | ||
| 5 | Remove bolts (7) | ||
| 6 | Close stowage box (5) | ||

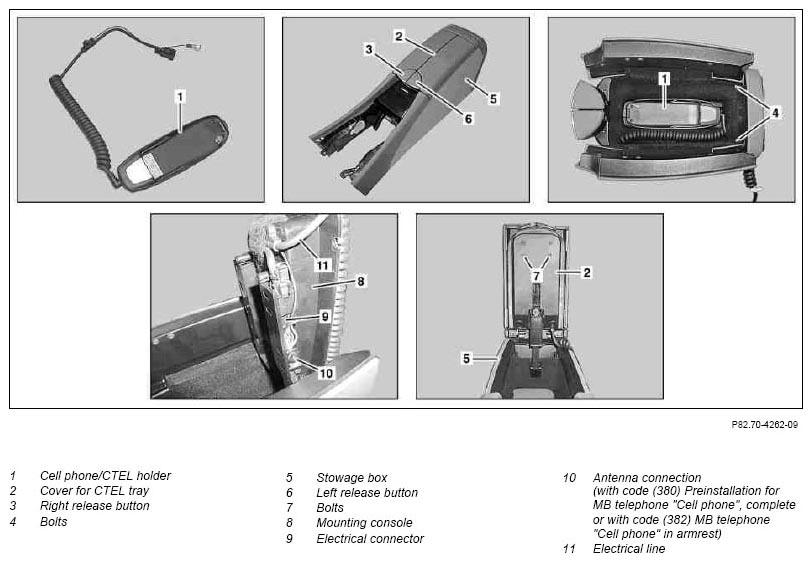

| 7 | Unclip mounting console (8) from telephone compartment upwards and lift up towards rear until the electrical connector (9) is accessible | Figure | |
| 8 | Disconnect electrical connector (9) | ||
| 9 | Disconnect antenna connector (10) | In vehicles with code (380) Preinstallation for MB telephone "Cell phone", complete or with code (382) MB telephone "Cell phone" in armrest | |
| 10 | Detach electrical line (11) from mounting console (8) | ||
| 11 | Remove cell phone/telephone holder (1) from mounting console (8) | ||
| 12 | Install in the reverse order |
