Adjusting wiper system - AR82.30-P-6400-01T

Model 211

WIPER ARM TEST AND ADJUSTMENT VALUES

Number Designation Model 211
BE82.30-P-1003-01E Angle of incidence of wiper arm on driver-side in park position Left-hand drive vehicle ∠° +2.5 to +6.5
Right-hand drive vehicle ∠° +2.5 to -6.5
WINDSHIELD WIPER

Number Designation Model 211.0 Model 211.2 Model 211.6
BA82.30-P-1007-01A Nut/screw, wiper system to partition wall Nm 11 11 11
Fig 1: Identifying Mounting Wedge (110 589 03 59 00)
G07504849Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Identifying Pulling Hook (140 589 02 33 00)
G07504850Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Adjustment Tool Set (211 589 02 21 00)
G07504851Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

IMPORTANT The wiper system may only be adjusted if the test values of wiper arms deviate from the tolerance range in park position.

  1. SPECIAL TOOL Install angle gauge (A) to driver-side wiper arm (1).
  2. Open hood.

    IMPORTANT See Operator's Manual

  3. Loosen rubber seal (2) in the left area.
  4. Loosen wiring harness bracket (3) from the partition wall (4) and put wiring harness down on one side.
  5. Remove expansion clip (5).

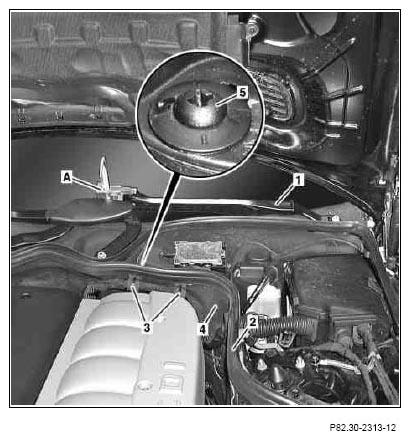

    Fig 4: Identifying Wiring Harness Bracket, Expansion Clip, Rubber Seal And Angle Gauge On Driver-Side Wiper Arm
    G07504852Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  6. SPECIAL TOOL Insert mounting wedge (6) between water collector (7) and partition wall (4).
  7. Loosen bolt (8).
  8. SPECIAL TOOL Attach pulling hook (9) at wiper system bracket and move it horizontally until the correct adjustment value is shown on the dial of the SPECIAL TOOL angle gauge (A).
  9. Tighten screw (8).
  10. SPECIAL TOOL Remove mounting wedge (6) and SPECIAL TOOL pulling hook (9).

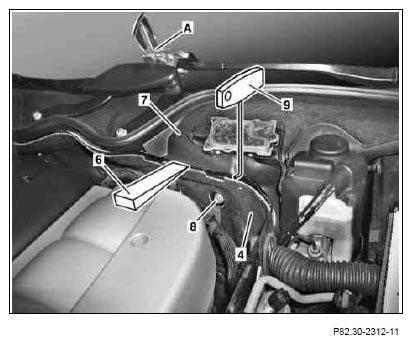

    Fig 5: Adjusting Wiper System Bracket
    G07504853Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  11. Install expansion clip (5).

    IMPORTANT Replace damaged expansion clip (5).

  12. Fasten wiring harness bracket (3) and rubber seal (2) at partition wall (4).

    IMPORTANT Ensure that the sealing rings (2) are correctly seated.

  13. Close hood.
  14. SPECIAL TOOL Remove angle gauge (A) from driver-side wiper arm (1).
    Fig 6: Identifying Wiring Harness Bracket, Expansion Clip, Rubber Seal And Angle Gauge On Driver-Side Wiper Arm
    G07504852Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
