Retrofit wiring harness - AN82.61-P-0001-01TCZ

Cut pink line (rs) of navigation processor wiring harness (1) as shown in the picture so that 30 mm of the pink line (rs) are left before the sleeving of the navigation processor wiring harness (1).
The cut-off pink line (rs) is no longer required.
Strap down the GPS antenna line (6) and GPS coupling for the navigation processor (9) on the navigation processor wiring harness (1).
The GPS antenna line (6) and GPS coupling for the navigation processor (9) are no longer required.
Check chamber assignment of black 8-pin navigation processor connector (12):
- Chamber 1 brown line (voltage supply -)
- Chamber 2 red/white line (voltage supply +)
- Chamber 5 pink line (MOST wake-up line).

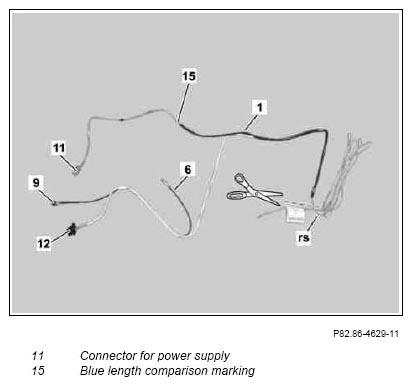

  Fig 1: Cutting Pink Line Of Navigation Processor Wiring Harness
  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
If the chambers are not correctly assigned, open black 8-pin navigation processor connector (12) and reconnect lines. Then close the connector again.
Plug blue 2-pin voltage supply coupling (11) of navigation processor coupling into plug position 16 of the rear SAM control unit with fuse and relay module (N10/2).
Plug position 16 is marked in blue.

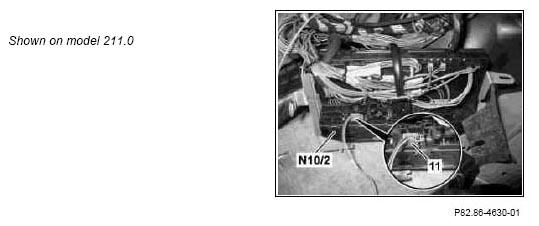

Fig 2: Identifying Blue 2-Pin Voltage Supply Coupling With Fuse And Relay Module
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route the navigation processor wiring harness (1) as shown in the picture so that the blue length comparison marking (15) on the navigation processor wiring harness (1) lines up with the identically colored length comparison markings on the on-board wiring harnesses.
Connect pink line (rs) of navigation processor wiring harness (1) directly behind MOST connector housing (10) with potential distributor (16) to the pink line (MOST wake-up line) of on-board wiring harness for the audio gateway control unit (see enlarged detail).
Shown on model 211.0

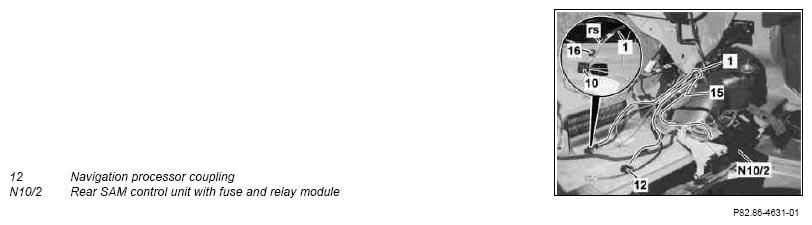

Fig 3: Identifying Navigation Processor Coupling And Rear SAM Control Unit With Fuse And Relay Module
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route navigation processor wiring harness (1) as shown in the picture and fasten using cable ties (see arrow) to the rear SAM control unit with fuse and relay module (N10/2) ensuring that it does not chafe or make any noise.
The navigation processor wiring harness (1) is routed and fastened in place after installation of the rear SAM control unit with fuse and relay module (N10/2).

Shown on model 211.0

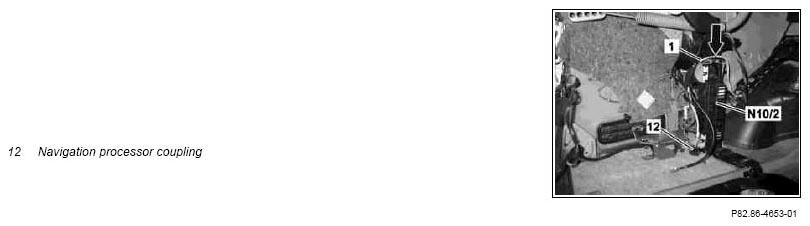

Fig 4: Identifying Navigation Processor Coupling
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
