Retrofit audio gateway control unit - AN82.61-P-0001-07TC

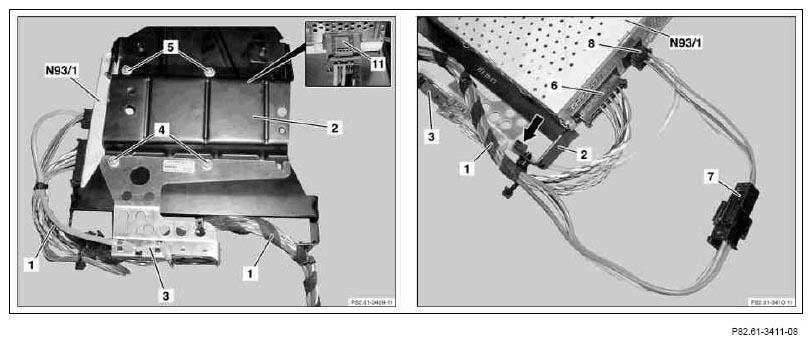

- Fasten audio gateway control unit (N93/1) onto bracket (2) using two nuts (5).
- Connect black 14-pin coupling (6) from auto pilot system wiring harness (1) to audio gateway control unit (N93/1).
- Fasten auto pilot system wiring harness (1) using given cable strap holder onto bracket (2) (arrow).
- Attach auto pilot system wiring harness (1) as per picture.
When routing, make sure that the auto pilot system wiring harness (1) does not chafe or make noise.

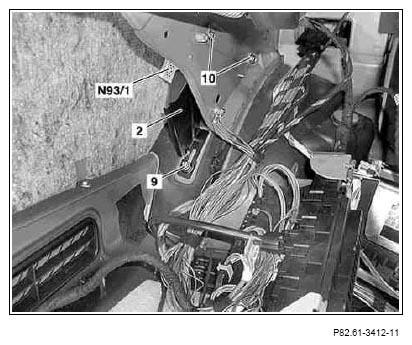

- Place bracket (2) with audio gateway control unit (N93/1) onto left rear wheel arch.
- Fasten bracket (2) using nut (9) and bolts (10).
