Retrofit antenna line - AN82.62-P-0001-04TXZ

Illustrated on model 219

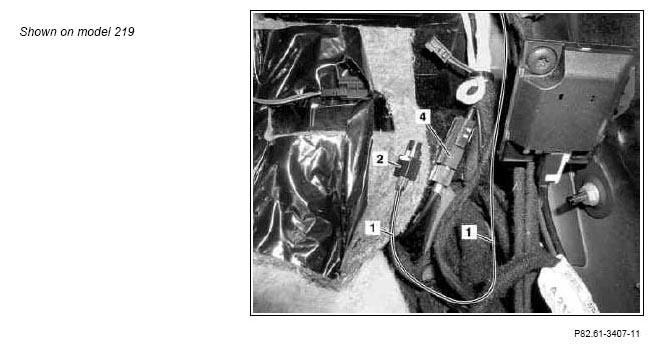

Fig 1: Identifying Antenna Line, Connector And Clutch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The separation point of the antenna line is located on the left wheelhouse, above the left rear entrance.

1. Detach standard antenna plug connector (4), insulate connector using felt tape and strap down (no longer required).
2. Connect new plug connector (2) of new antenna line (1) with standard coupling of antenna connector (4).
3. Route new antenna line (1) along existing lines into left of luggage compartment and fasten in place.

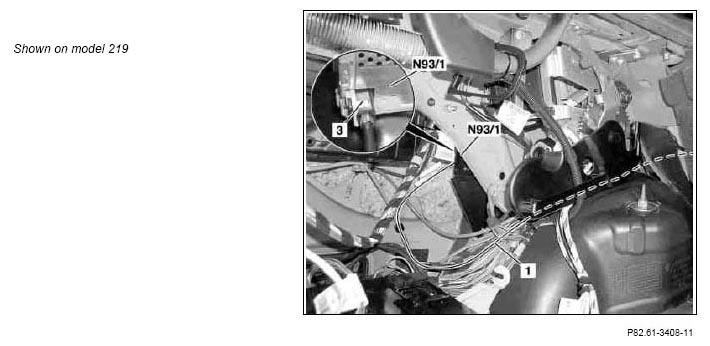

   Fig 2: Identifying Antenna Line, Plug Connector And Coupling Of Antenna Connector

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. Route antenna line (1) further along existing lines to the audio gateway control unit (N93/1) and fasten in place.
5. Connect coupling (3) of new antenna line (1) to audio gateway control unit (N93/1).

   The connection at the audio gateway control unit (N93/1) is coded.
