Retrofit antenna line - AN82.62-P-0001-04TX

Shown on model 219

1. Detach standard antenna connector (4), insulate connector (no longer required) using felt tape and strap down.

   The antenna connector (4) is located on the left wheel arch, above the left rear entrance.

2. Connect connector (2) of new antenna line (1) with coupling of detached antenna connector (4).
3. Route new antenna line (1) along existing lines into left of luggage compartment and fasten in place.

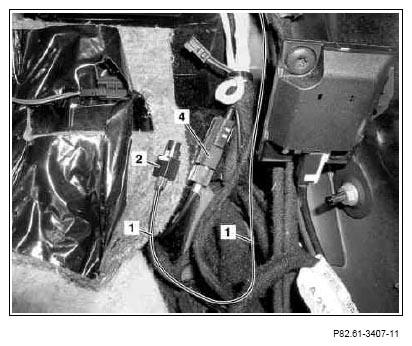

   Fig 1: Identifying Antenna Line Connector & Coupling Of Detached Antenna Connector

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. Route antenna line (1) further along existing lines to the audio gateway control unit (N93/1) and fasten in place.
5. Connect coupling (3) of new antenna line (1) to audio gateway control unit (N93/1).

   The connection at the audio gateway control unit (N93/1) is coded.

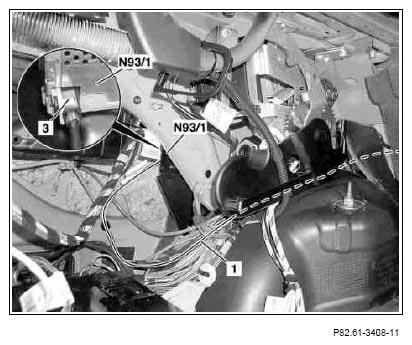

   Fig 2: Identifying Audio Gateway Control Unit & Coupling Of Antenna Line

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
