Retrofit MOST fiber optic cable wiring harness - AN82.61-P-0001-06TAC

Actual status of Media Oriented System Transport (MOST) fiber optic cable wiring harness (7)

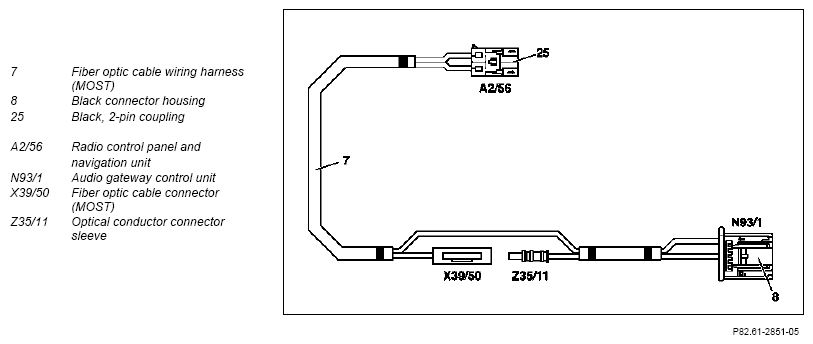

Fig 1: Identifying MOST Fiber Optic Cable Wiring Harness (Actual Status)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Unclip cover (14) (no longer required) of fiber optic cable connector (MOST) (X39/50) in direction of arrow (arrow A).
Release catch hook (15) of fiber optic cable connector (MOST) (X39/50) and remove fiber optic cable module of fiber optic cable wiring harness (MOST) (7) in direction of the arrow (arrow B) out of the fiber optic cable connector (MOST) (X39/50) (no longer required).

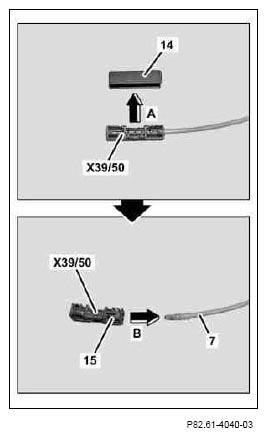

Fig 2: Unclipping Cover Of Fiber Optic Cable Connector (MOST)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove the dust cap (24) (no longer required) in direction of the arrow (arrow C) from the optical conductor connector sleeve (Z35/11).

Fig 3: Removing Dust Cap
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Specified status of fiber optic cable wiring harness (MOST) (7)

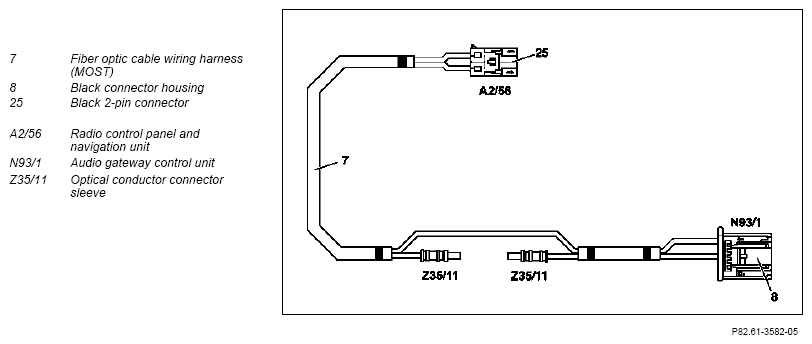

Fig 4: Identifying MOST Fiber Optic Cable Wiring Harness (Specified Status)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

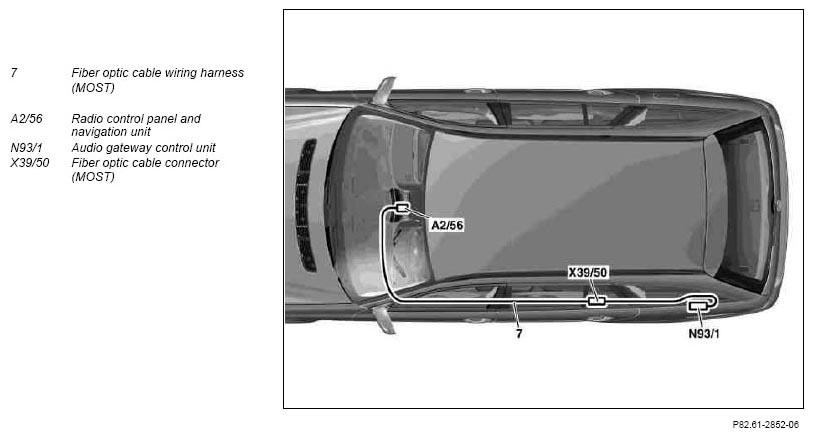

Routing diagram for fiber optic cable wiring harness (MOST) (7), shown on model 211.2

Fig 5: Routing Diagram For Fiber Optic Cable Wiring Harness (MOST)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.2

The fiber optic cable wiring harness (MOST) (7) is routed forward starting from the left of the trunk.
Insert black 4-pin coupling (6) from auto pilot system wiring harness (1) into black 6-pin coupling housing (8) of fiber optic cable wiring harness (MOST) (7).
The black coupling housing (8) is from audio gateway control unit (N93/1). An arrow is located at the side of the black 4-pin coupling (6). This corresponds to the direction of installation into the black coupling housing (8).
Connect the black coupling housing (8) to the audio gateway control unit (N93/1).
Fasten fiber optic cable wiring harness (MOST) (7) as shown on left wheel arch to on-board wiring harness.
The green color coding on the MOST fiber optic cable wiring harness (7) must match the green color coding of the on-board wiring harness (arrow D).

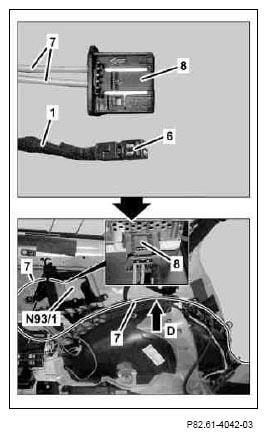

Fig 6: Identifying Black 4-Pin Coupling Of Auto Pilot System Wiring Harness And Black 6-Pin Coupling Housing Of Fiber Optic Cable Wiring Harness (MOST)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route fiber optic cable wiring harness (MOST) (7) further to cable duct in left rear footwell.
Shown on model 211.2
Expose the on-board fiber optic cable connector (MOST) (X39/50) in the area of the left rear door cable duct.
There are two fiber optic cable connectors (MOST) (X39/50).

A number is printed at the end of each fiber optic cable module.

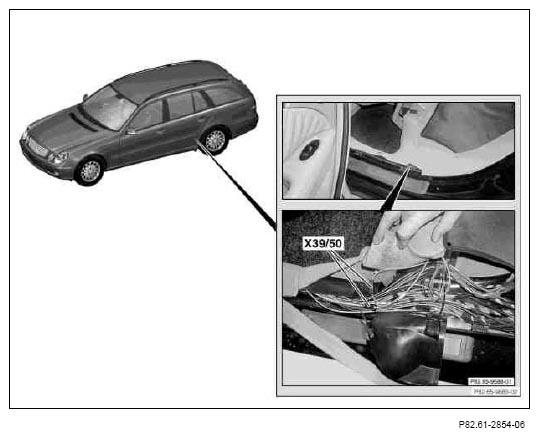

Fig 7: Locating On-Board Fiber Optic Cable Connector (MOST)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

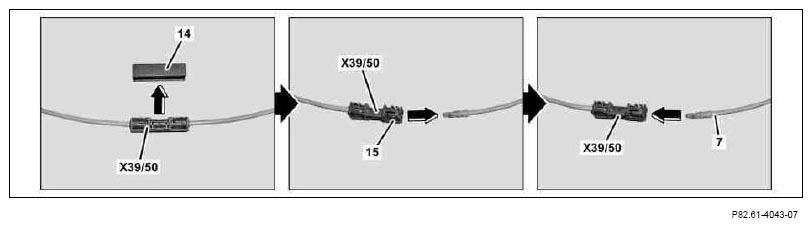

Fig 8: Unclipping Covering Of On-Board Fiber Optic Cable Connectors (MOST)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Unclip covering (14) of both on-board fiber optic cable connectors (MOST) (X39/50) in direction of arrow.
Determine which fiber optic cable connector (MOST) (X39/50) contains an on-board fiber optic cable module with the number XX1 or number 4.
Release catch hook (15) of fiber optic cable connector (MOST) (X39/50) and remove on-board fiber optic cable module with number XX1 or with number 4 from fiber optic cable connector (MOST) (X39/50).
The on-board fiber optic cable module with number XX1 or number 4 is no longer required and is to be strapped down in the cable duct.
Install fiber optic cable module with number XX1 of fiber optic cable wiring harness (MOST) (7) into free plug position of fiber optic cable connector (MOST) (X39/50).
Determine which fiber optic cable connector (MOST) (X39/50) contains an on-board fiber optic cable module with the number 14.
Release catch hook (15) of fiber optic cable connector (MOST) (X39/50) and remove on-board fiber optic cable module with number 14 from fiber optic cable connector (MOST) (X39/50).
The on-board fiber optic cable module with number 14 is no longer required and is to be strapped down in the cable duct.
Install fiber optic cable module with number 20 of fiber optic cable wiring harness (MOST) (7) into free plug position of fiber optic cable connector (MOST) (X39/50).
Clip on cover (14) on both on-board fiber optic cable connectors (MOST) (X39/50).
Insert fiber optic cable connector (MOST) (X39/50) into cable duct in area of left rear door.
There are two fiber optic cable connectors (MOST).
Route MOST fiber optic cable wiring harness (7) further into left cable duct in left front footwell.
Route fiber optic cable wiring harness (MOST) (7) from left footwell cable duct along parking brake cable (16) to radio recess and fix in place.

Fig 9: Identifying Fiber Optic Cable Wiring Harness (MOST) And Parking Brake Cable
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Insert black 2-pin coupling (25) from fiber optic cable wiring harness (MOST) (7) into included black coupling housing (8).
Insert black 4-pin coupling (6) from auto pilot system wiring harness (1) into black coupling housing (8).
Observe installation position (arrow).

Fig 10: Inserting Black 4-Pin Coupling From Auto Pilot System Wiring Harness Into Black Coupling Housing
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
