Remove/install xenon headlamp control unit - AR82.10-P-4632T

MODEL 211.0/2/6 up to 31.5.06 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with integrated curve illumination

Shown on the removed left front lamp unit

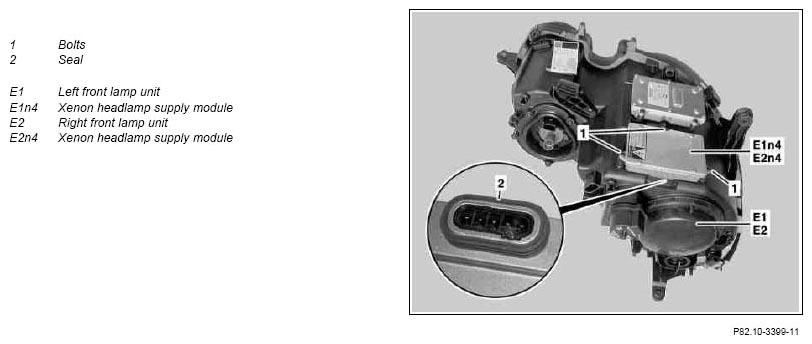

Fig 1: Identifying Xenon Headlamp Supply Module, Left/Right Front Lamp Unit, Bolts And Seal

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death  caused by high voltage levels present at xenon headlamps. Risk of explosion/risk of fire  due to highly flammable materials in the area of damaged xenon bulbs Risk of injury  from UV light, hot components at xenon headlamps and glass splinters when xenon bulbs crack Risk of poisoning  caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with skin	Do not come into contact with parts that are under high voltage. Persons with active electronic implants  (e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure sufficient ventilation in the working area.	AS82.10-Z-0001-01A
1	Remove left front lamp unit (E1)	For removal of the Xenon headlamp supply module (E1n4) on vehicles with code (489) Airmatic (semi-active air suspension).	AR82.10-P-4730TA
2.1	Remove engine compartment paneling at front	In vehicles with gasoline engine	AR61.20-P-1105T
2.2	Remove bottom section of soundproofing at front	In vehicles with diesel engine	AR94.30-P-5300T
3	Remove bolts (1)
4	Pull xenon headlamp supply module (E1n4 or E2n4) out of left front lamp unit (E1) or right front lamp unit (E2)
5	Install in the reverse order
