Remove/install wiper motor - AR82.30-P-6800T

MODEL 211.0/2/6

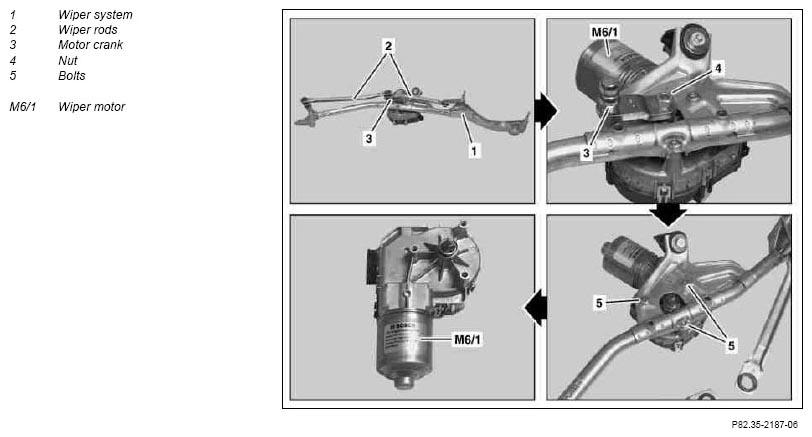

Fig 1: Identifying Wiper Motor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

14.1.04

Disconnect/connect/remove ground lead from battery

AR82.30-P-6800-01T

	Remove
1	Remove wiper system (1)		AR82.30-P-6400T
2	Remove wiper rods (2) from motor crank (3)
3.1	Remove nut (4) and detach motor crank (3) from wiper motor (M6/1)	Only when replacing wiper motor (M6/1).
4	Unscrew bolts (5)
5	Remove wiper motor (M6/1)
	Install
6	Move wiper motor (M6/1) to parking position		AR82.30-P-6800-01T
7	Put on wiper motor (M6/1) and screw in bolts (5)		*BA82.30-P-1001-01A
8.1	Attach motor crank (3) to wiper motor (M6/1)	Only when replacing wiper motor (M6/1). Note installation position, wiper rods (2) and motor crank (3) have to align.
9.1	Tighten nut (4) for motor crank (3)	Only when replacing wiper motor (M6/1).
			*BA82.30-P-1002-01A
10	Install wiper rods (2) on motor crank (3)
11	Install wiper system (1)		AR82.30-P-6400T

WINDSHIELD WIPER

Number	Designation		Model 211.0	Model 211.2	Model 211.6
BA82.30-P-1001-01A	Bolt on wiper motor fixing	Nm	9	9	9
BA82.30-P-1002-01A	Nut on wiper motor shaft	Nm	18	18	18
