Remove/install tailgate wiper arm - AR82.30-P-6910T

MODEL 211.2

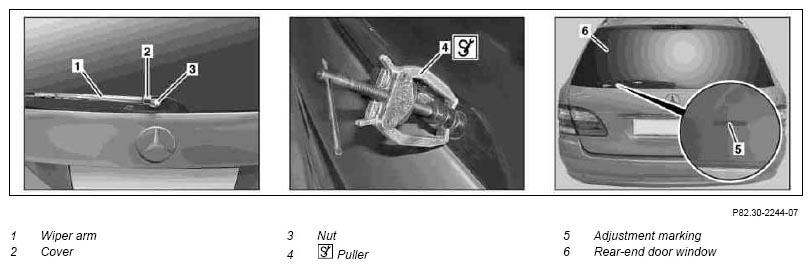

Fig 1: Removing Tailgate Wiper Arm

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Risk of injury. Moving parts can pinch, crush or  , in extreme cases even sever  extremities.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0009-01A
1	Ensure that rear-end door wiper motor is switched off	Switch ignition on and switch rear-end door wiper motor off. Then switch ignition on again.
2	Raise cover (2)
3	Unscrew nut (3)		*BA82.30-P-1009-01A
4	Fit puller (4) and pull wiper arm (1) from shaft of rear-end door wiper motor		*001589383300
5	Remove puller (4) and remove from wiper arm (1)	Installation:  Note adjusting mark (5) for wiper arm park position (1) at rear-end door window (6).
6	Install in the reverse order

WINDSHIELD WIPER

Number	Designation		Model 211.2
BA82.30-P-1009-01A	Wiper arm nut to rear-end door wiper motor	NM	12
