Remove/install fog lamps - AR82.10-P-1835TM
MODEL 211.0/2/6 as of 1.6.06

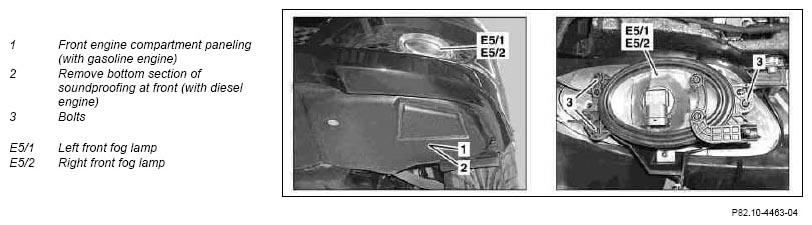

Illustrated on left fog lamp
| Remove/install | |||
| 1.1 | Detach lower engine compartment paneling at front (1) | In vehicles with gasoline engine | AR61.20-P-1105T |
| 1.2 | Remove bottom part of noise encapsulation at front (2) | In vehicles with diesel engine | AR94.30-P-5300T |
| 2 | Disconnect electrical connector from left front fog lamp (E5/1) or right front fog lamp (E5/2) | ||
| 3 | Remove screws (3) and remove left front fog lamp (E5/1) or right front fog lamp (E5/2) from front bumper | ||
| 4 | Install in the reverse order | ||
| 5 | Check adjustment for left front fog lamp (E5/1) and right front fog lamp (E5/2), correct if necessary | ||
| Check and correct headlamp adjustment | AP82.10-P-8260T |
