Electronic rear axle level control, location of components - GF32.33-P-0004-06A

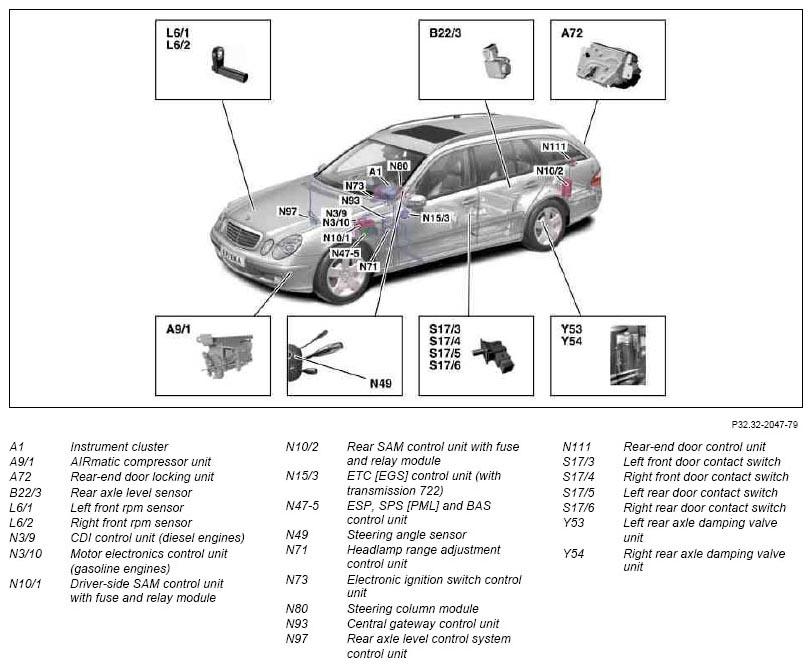

Fig 1: Locating Electronic Rear Axle Level Control Components

G07274403

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
