Remove/install switch for steering wheel heater and steering column adjustment - AR46.11-P-0004T

MODEL MODEL/211.0///2/6 with CODE (275a) Memory package (driver's seat, steering column, mirrors)

As of model year 04

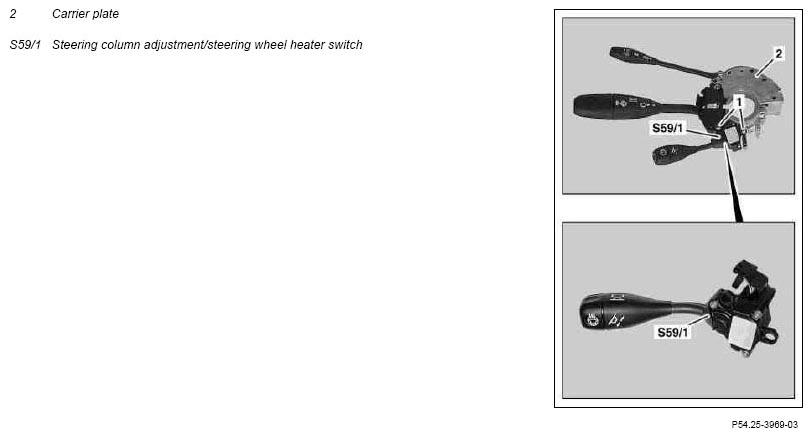

Fig 1: Identifying Steering Column Adjustment/Steering Wheel Heater Switch And Carrier Plate

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove steering wheel	AR46.10-P-0100T
2	Remove clock spring contact	AR46.10-P-0200TA
3	Remove steering angle sensor	AR46.10-P-0300TA
4	Dismantle steering column adjustment/steering wheel heater switch (S59/1) from carrier plate (2)
5	Install in the reverse order
