Remove/install rear seat backrest - AR91.12-P-1620TB
MODEL 211.2
MODIFICATION NOTES
| 28.1.04 | Disconnect ground cable on battery, connect |
| Remove/Install | |||
|---|---|---|---|

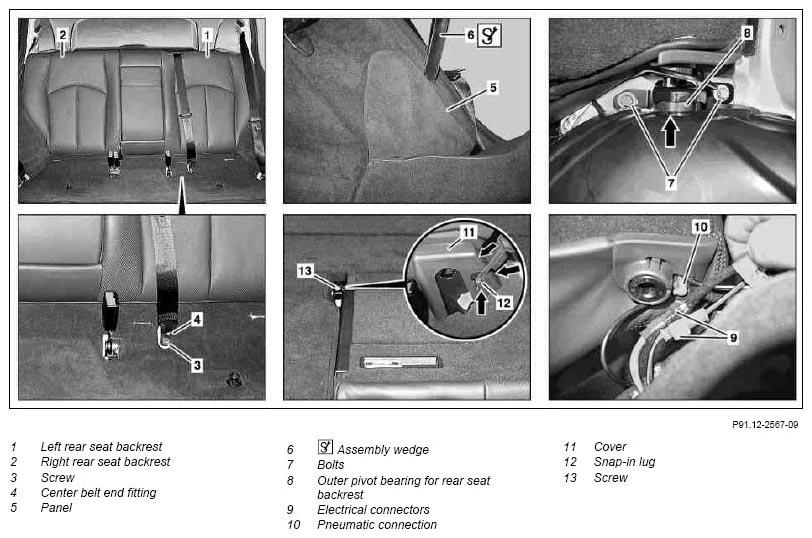

| 1 | Remove rear seat cushion | AR91.12-P-1020TB | |
| 2.1 | Undo screw (3) and remove center belt end fitting (4) | Only where left rear seat backrest is removed (1). | |
| *BA91.40-P-1012-01A | |||
| 3 | Release the right rear seat backrest (2) and the left rear seat backrest (1) and fold them forward | ||
| 4 | Remove luggage compartment cover | ||
| 5 | Using a mounting wedge (6), unclip paneling (5) and remove | *110589035900 | |
| 6 | Unscrew bolts (7) | *BA91.12-P-1010-02A | |
| 7 | Press the outer pivot bearing for rear seat backrest (8) out in the direction indicated by the arrow and remove it | ||
| 8 | Unplug electrical connectors (9) and the pneumatic connection (10) | ||
| 9 | Loosen the cover (11) at the engagement lugs (12) (arrows) and remove it from the center bearing bracket (16) | ||
| 10 | Unscrew bolt (13). | *BA91.12-P-1012-02A | |

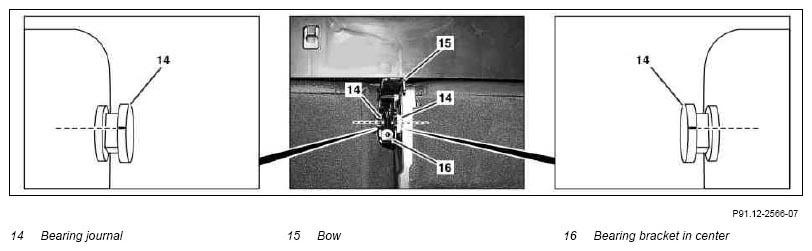

| 11 | Fold up bracket (15) on center bearing bracket (16) and mark the installation position of the journals (14) relative to the center bearing bracket (16) | ||
| 12 | Remove left rear seat backrest (1) or right rear seat backrest (2) | ||
| 13 | Install in the reverse order | ||
| 14 | Check the automatic fold-down function of the rear head restraints, and correct the installation position of the journals (14) if necessary. |
REAR SEAT BACKREST
| Number | Designation | Model Series 211.2 | |
|---|---|---|---|
| BA91.12-P-1010-02A | Bolts of pivot bearing of outer rear seat backrest to longitudinal member | Nm | 20 |
| BA91.12-P-1012-02A | Bolt of bow to bearing bracket | Nm | 8 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 211.2 | |
|---|---|---|---|
| BA91.40-P-1012-01A | Bolt, belt end fitting to vehicle floor | Nm | 32 |
