Remove, install catalytic converter - AR49.10-P-5500TT

ENGINE 272, 273 in MODEL 211

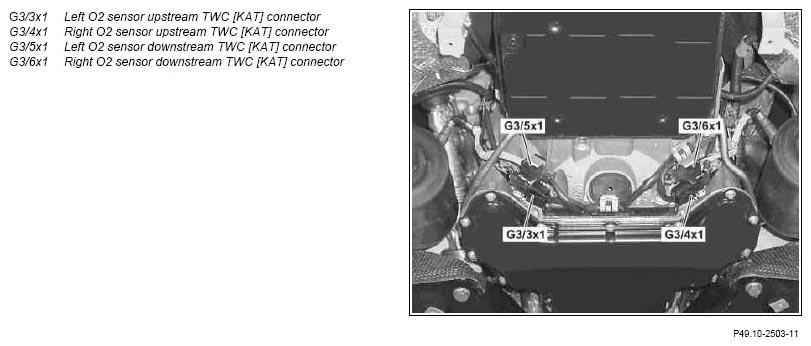

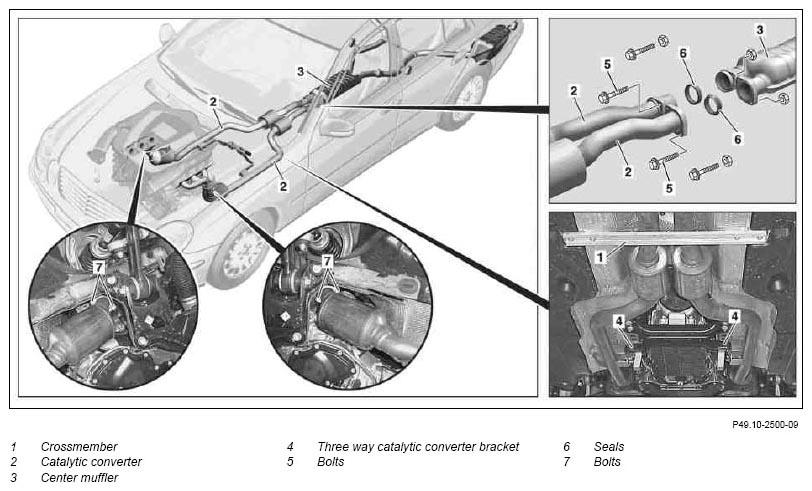

Fig 1: Identifying Catalytic Converter Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying O2 Sensors

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury from grazing or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Raise vehicle with lifting platform		AR00.60-P-1000T
2	Detach the rear section of the lower engine compartment paneling	Installation: Install engine compartment paneling only after the engine test run.	AR61.20-P-1105T
3	Remove crossmember (1)		*BA62.30-P-1001-01A
4	Unclip the electrical connectors (G3/3x1, G3/4x1, G3/5x1, G3/6x1) and electrical lines of the O2 sensors of the catalytic converter (2) for removal from the retaining clamps
5	Disconnect the electrical connectors (G3/3x1, G3/4x1, G3/5x1, G3/6x1) of the O2 sensors of the catalytic converter (2) for removal
6	Support center muffler (3) with a transmission jack and a transmission platform	Transmission jack http://gotis.aftersales.mercedes-benz.com Transmission platform http://gotis.aftersales.mercedes-benz.com
7	Detach catalytic converter (2) from catalytic converter bracket (4)		*BA49.10-P-1007-01T
8	Unscrew bolts (5) and remove catalytic converter 2) from center muffler (3)	Installation: Clean connecting points of combustion and corrosion residues. Install new seals (6) and bolts (5).
8			*BA49.10-P-1002-01T
9	Undo bolts (7) and dismount catalytic convertor (2) from exhaust manifold	Installation: Clean connecting points of combustion and corrosion residues, replace bolts (7). Check the rivet nuts in the exhaust manifold and replace them if required: ↓
		Replace rivet nuts in exhaust manifold.	AR49.10-P-5531-01DA
			*BA49.10-P-1001-01T
10	Remove three-way catalytic converter (2)
	Notes on disposing of catalytic converters		OS49.10-P-1000-01A
11	Remove O2 sensors from respective catalytic converter (2)	When replacing the catalytic converter (2)
		Installation: Apply heat-resistant lubricant to thread of O2 sensors.	*BR00.45-Z-1005-06A
			*BA14.00-P-1002-01A
12	Install in the reverse order
	Checking
13	Inspect installation position and clearance of exhaust system	The exhaust system must be installed free of stress. Realign exhaust system if necessary.
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
14	Conduct engine test run and inspect exhaust system for leaks

CROSSMEMBER AND FRONT REINFORCEMENT

Number	Designation		Model 211
BA62.30-P-1001-01A	Bolt connecting crossmember to body	Nm	25

EXHAUST SYSTEM

Number	Designation		Engine 272, 273 in model 211
BA49.10-P-1001-01T	Bolt connecting catalytic converter to exhaust manifold	Nm	20
BA49.10-P-1002-01T	Bolt connecting catalytic converter to center muffler	Nm	20
BA49.10-P-1007-01T	Nut connecting catalytic converter bracket to catalytic converter	Nm	20

O2 SENSOR

Number	Designation		Engine 272	Engine 273
BA14.00-P-1002-01A	O₂ sensor to catalytic converter	Nm	50	50

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DB supply specification 6879.20	A 000 989 76 51
