Correcting rear articulation angle at rear axle center assembly - AR41.10-P-0086-05T

AIR SUSPENSION

Number	Designation		Model 211 with code 489 (Airmatic)	Model 219 with code 489 (Airmatic)
BA32.22-P-1009-03A	Bolt, additional volume reservoir to front center assembly suspension	Nm	20	20

REAR AXLE CARRIER

Number	Designation			Model 211
BA35.10-P-1006-01E	Self-safety bolt, front transverse bridge at rear axle carrier	1st stage	Nm	50
BA35.10-P-1006-01E		2nd stage	∠°	90

REAR AXLE CARRIER

Number	Designation			Model 219
BA35.10-P-1005-01J	Self-safety bolt, front transverse bridge at rear axle carrier	1st stage	Nm	80
BA35.10-P-1005-01J		2nd stage	∠°	60

WORKSHOP EQUIPMENT

WE58.40-Z-1018-11A	Transmission platform
WE58.40-Z-1030-11A	Transmission jack

Remove exhaust shielding plate (106a) and exhaust shielding plate (106b).
Vehicles with AIRMATIC DC

2.1 Detach additional volume reservoir on right (60a) and additional volume reservoir on left (60b).
Shows model 211

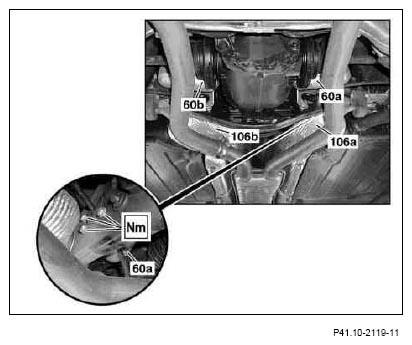

Fig 1: Identifying Exhaust Shielding Plates And Additional Volume Reservoir On Left And Right
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Correct the rear articulation angle ( 3)

Corresponding shims are available as a replacement part for articulation angle correction at the rear axle center assembly.

The shims are available with a hole eccentricity of 1 mm to 4 mm. 1 mm corresponds to a change in the articulation angle of approx. 0.2° to 0.3°. The eccentricity measurement is marked on the top of the shim.

Shown on shims with a hole eccentricity of 4 mm and in the correct installation position

Fig 2: Identifying Shims With Hole Eccentricity Of 4 mm And In Correct Installation Position
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3 Support rear axle center assembly with transmission jack and transmission platform.
4 Detach bolts (51a) and nuts (51c) from transverse bridge (51).
5 Remove shims (51b).
6 Install the appropriate shims (51b) according to the type of correction.

Ensure that the shims (51b) are correctly positioned, see diagram. All the shims installed must have the same eccentric hole arrangement.

Shows model 211

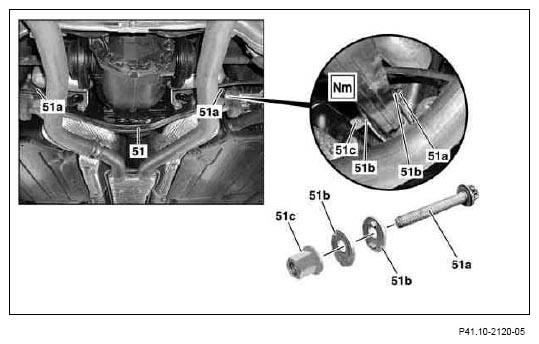

Fig 3: Identifying Shim, Bolts, Nuts And Transverse Bridge
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
7 Install bolts (51a) and nuts (51c) .
8 Remove transmission jack and transmission platform.
Vehicles with AIRMATIC DC
9.1 Attach additional volume reservoir on right (60a) and additional volume reservoir on left (60b) .
10 Install exhaust shielding plate (106a) and exhaust shielding plate (106b).
