Align window in body opening - AR67.20-P-3550-04PA

CHECK VALUES FOR REAR-END WINDOW, REAR WINDOW

Number Designation Model 203.2
BE67.20-P-1002-01E Interval between bottom edge of rear window and edge of tailgate paneling mm 2
CHECK VALUES FOR REAR-END WINDOW, REAR WINDOW

Number Designation Model 211.2
BE67.20-P-1003-01F Distance between window molding and edge of rear door paneling mm 3
Fig 1: Identifying Feeler Gauge (129 589 03 21 00)
G07274735Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown model 203.2

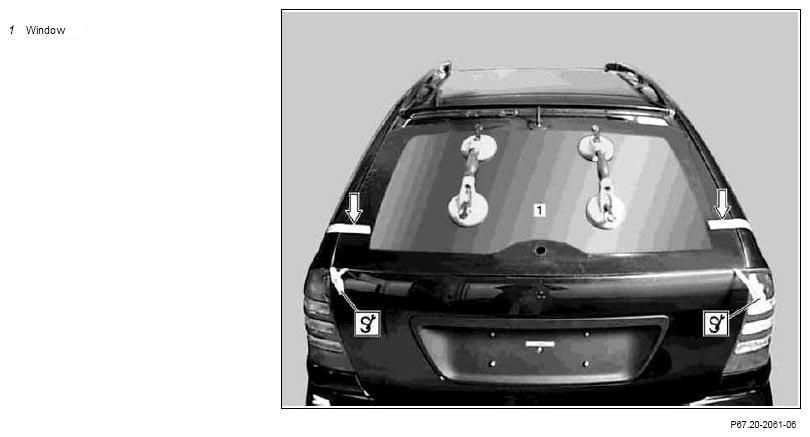

Fig 2: Identifying Window (Shown Model 203.2)
G07274736Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

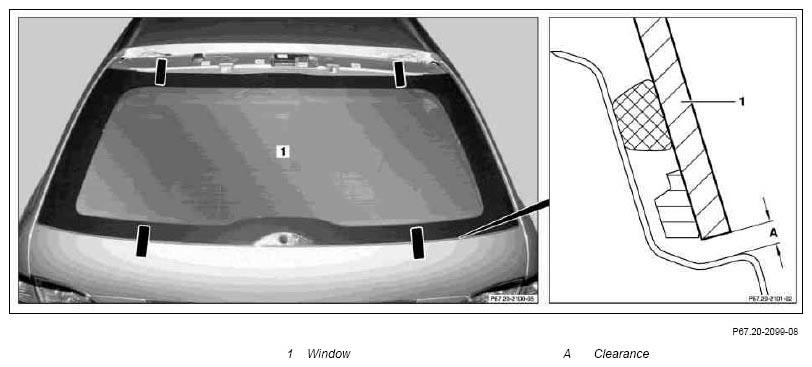

Fig 3: Identifying Gap Dimension At Edge Of Window
G07274737Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.2

  1. Install cup suction tool on window (1).
  2. Position window (1) on body flange on rear door with aid of helper.
  3. Adjust gap dimension (A) at edge of rear door paneling with SPECIAL TOOL feeler gauge
  4. Center window (1).
  5. Check gap dimension (A) at edge of rear door paneling, if applicable repeat operation steps 3 and 4.
  6. Glue on strips of tape as shown.
  7. Cut strips of tape on gap dimension (A) at edge of window (1)
  8. Remove window (1) with aid of helper.
