Remove/install rear spoiler - AR72.20-P-4000T

MODEL 211.2 up to 31.5.06

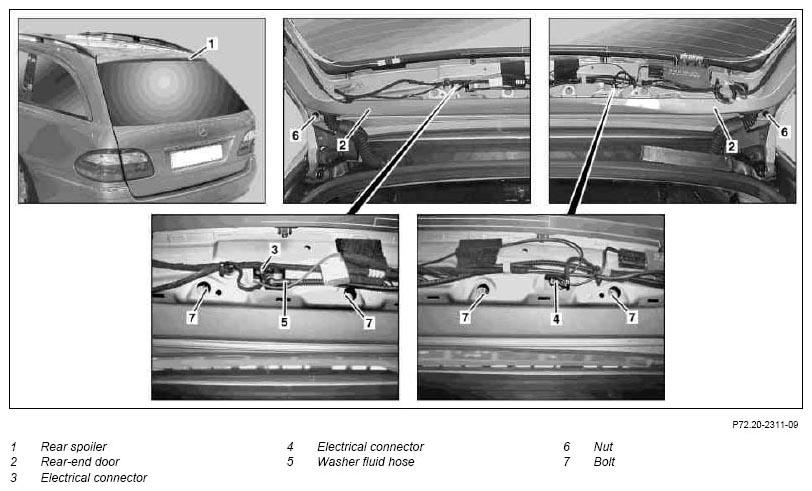

Fig 1: Identifying Rear Spoiler Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove liner from tailgate (2)	Remove only top paneling.	AR72.20-P-3520T
2	Disconnect electrical connectors (3, 4)
3	Remove washing water hose (5) from windshield washer nozzle	Plug washing water hose (5) with suitable plug.
4	Unscrew nuts (6).		*BA72.20-P-1009-02A
5	Unscrew screws (7) until a clacking noise can be heard	The bolts (7) remain in the retaining clips on the rear spoiler (1). Installation:  Replace damaged retaining clips on rear spoiler (1). Tighten screws (7) uniformly.
			*BA72.20-P-1010-02A
6	Remove rear spoiler (1) from tailgate (2) with aid of second mechanic
7	Install in the reverse order

TAILGATE

Number	Designation		Model 211.2
BA72.20-P-1009-02A	Nut, rear spoiler to rear-end door	Nm	1.5
BA72.20-P-1010-02A	Bolt in rear spoiler retaining clips to rear-end door	Nm	1.5
