Remove/install grab handle on roof - AR68.30-P-4330T

MODEL 211.0/2/6

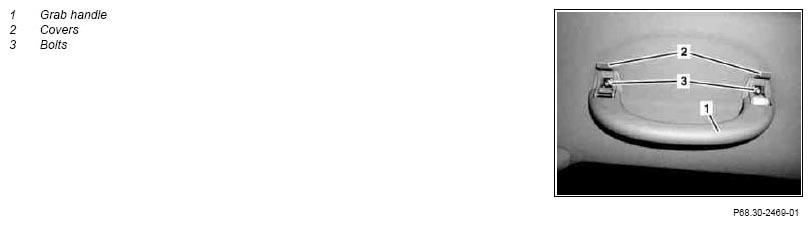

Fig 1: Identifying Roof Grab Handle Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal/installation
1	Open covers (2)
2	Remove bolts (3)	Installation:  When tightening bolts (3) prevent handle joint from twisting, otherwise folding of the grab handle (1) could be impaired.
3	Remove grab handle (1)	Note correct installation positions.
4	Install in the reverse order
