Retrofit wood/leather steering wheel with leather shift lever/leather selector lever - AN68.00-P-0001T

MODEL 211.0##/2## (except 211.076/077/276/277) 1#

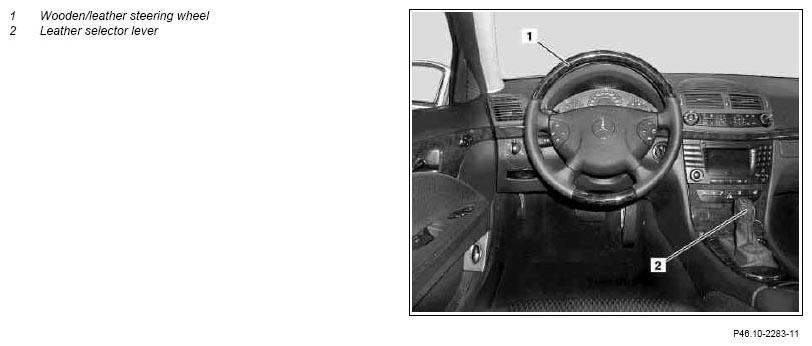

Fig 1: Identifying Wooden/Leather Steering Wheel And Leather Selector Lever

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove steering wheel	Installation:  The standard steering wheel is replaced by the wooden leather steering wheel (1) included in the scope of delivery.	AR46.10-P-0100T
2	Remove cover from shift lever/selector lever	Installation:  The standard gearshift lever/selector lever is replaced by the leather shift lever/leather selector lever (2) included in the scope of delivery.	AR68.20-P-2350T
3	Install in the reverse order
4	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach note "Wooden leather steering wheel with leather shift lever/leather selector lever retrofitted according to AN68.00-P-0001T " under field organization texts to group KG68.

PARTS ORDERING NOTES

Part no.	Designation	Quantity
DG 99 (see EPC)	Scope of delivery for wooden/leather steering wheel and leather shift lever/leather selector lever	1
