Remove/install glass adjustment drive - AR88.70-P-9060R

MODEL 211.0/2/6, 230.4, 240

Shown on model 230 without code (P99) Special model "AMG Black Series"

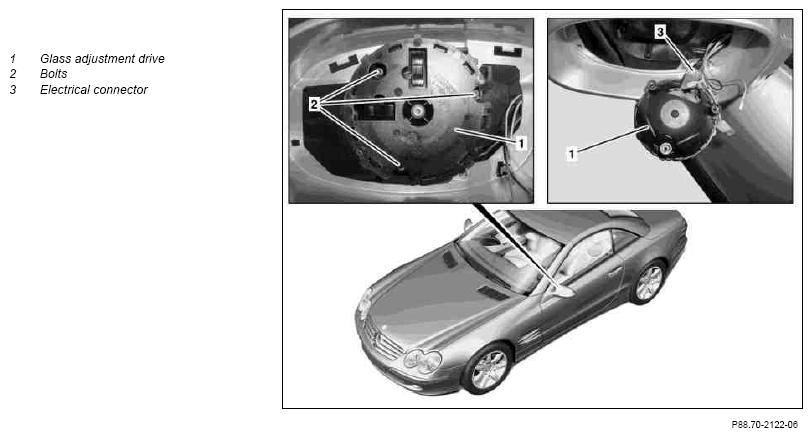

Fig 1: Identifying Glass Adjustment Drive Components - Shown On Model 230 Without Code (P99)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove mirror glass	Model 211 up to 31.5.06 Model 230.4 up to vehicle end-no. 064520 except code (804) model year 2004 Model 240	AR88.70-P-9020R
		Model 211 as of 1.6.06	AR88.70-P-9020TX
		Model 230.4 as of vehicle end-no.. 064521 except code (803) model year 2003	AR88.70-P-9020RA
2	Remove bolts (2)
3	Remove glass adjustment drive (1)
4	Disconnect electrical connector (3)
5	Install in the reverse order
