Remove/install fender liner front section in front fender - AR88.10-P-1310T

MODEL 211.0/2/6

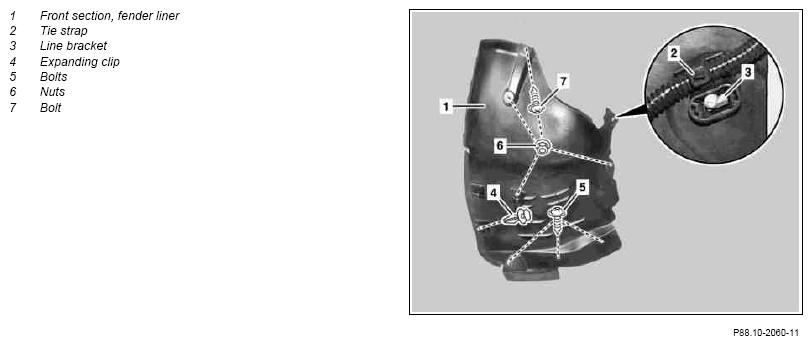

Fig 1: Identifying Fender Liner Front Section In Front Fender Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with lifting platform
2	Turn left or right wheel of front axle to full lock
3	Remove tie strap (2) and line bracket (3)	Installation:  Replace tie straps (2).
4	Remove expanding clip (4)
5	Unscrew bolts (5)
6	Unscrew nuts (6)
7	Remove bolt (7)
8	Loosen rear fender liner section approx. 20 cm out of fender with mounting wedge	Loosen rear fender liner section until front section of fender liner (1) can be removed from fender (1)
			*110589035900
9	Remove front fender liner section (1) from fender	Installation:  Ensure that fender liner is seated correctly.
10	Install in the reverse order
