Check setting of windshield washer system spray nozzles - AP82.35-P-8252-01T

AP82.35-P-8252-01T  Check setting of windshield washer system spray nozzles
DANGER Risk of fire and explosion  caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of children's reach only. AS82.35-Z-0001-01A
Fig 1: Identifying Adjusting Tool (110 589 02 63 00)
G07284747Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Check windshield washer system spray nozzle settings, correct if necessary with SPECIAL TOOL adjusting drift.

    IMPORTANT The spray jets must strike the windshield in the marked area.

    IMPORTANT Model 211.2: The spray jet must strike the rear window in the center.

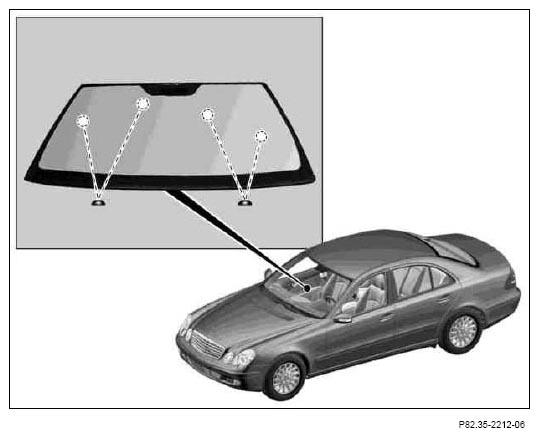

    Fig 2: Identifying Windshield Washer System Nozzle Spray Position
    G07254235Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
