Remove/install additional turn signal lamp - AR82.25-P-4726T
MODEL 211.0/2/6

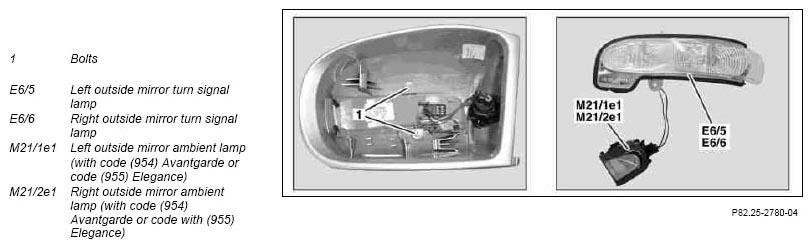

Shown on left outside mirror, vehicle up to 31.5.06 and code (954) Avantgarde
Fig 1: Identifying Additional Turn Signal Lamp Components (Vehicle Up To 31.5.06 And Code (954) Avantgarde)

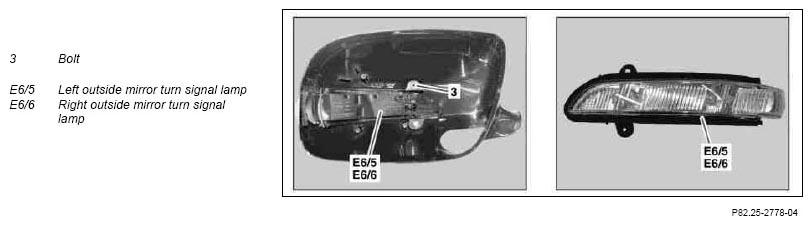

Shown on left outside mirror, vehicle as of 1.6.06
Fig 2: Identifying Left/Right Outside Mirror Turn Signal Lamps With Mounting Bolt (Vehicle As Of 1.6.06)
| Remove/install | |||
| 1 | Remove covering on outside rearview mirror | In vehicles up to 31.5.06 | AR88.70-P-9040T |
| In vehicles as of 1.6.06 | AR88.70-P-9040TM | ||
| 2.1 | Remove bolts (1) | In vehicles up to 31.5.06 | |
| 2.2 | Unscrew bolt (3). | In vehicles as of 1.6.06 | |
| 3.1 | Unclip left outside mirror ambient lamp (M21/1e1) or right outside mirror ambient lamp (M21/2e1) from outside mirror trim, expose associated electrical lines | In vehicles with Code (954) Avantgarde or Code (955) Elegance | |
| 4 | Remove left outside mirror turn signal lamp (E6/5) or right outside mirror turn signal lamp (E6/6) from outside mirror trim | ||
| 5 | Install in the reverse order |
