Remove and reinstall switch group at overhead control panel control unit - AR82.20-P-1005T
MODEL 211.0/2 with CODE (383b) CP High telephone system with CODE (384) Phone preinstallation for USA with CODE (551a) Anti-theft alarm system (ATA)
MODEL 211.6 with CODE (551a) Anti-theft alarm system (ATA)

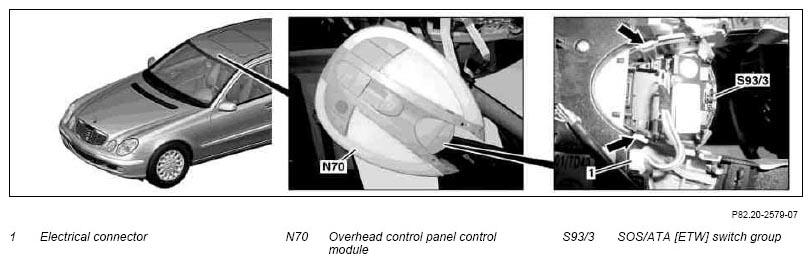

Fig 1: Identifying Overhead Control Panel Control Module, SOS/ATA [ETW] Switch Group And Electrical Connector
| Remove/Install | |||
| 1 | Remove inside rearview mirror | AR68.40-P-0001T | |
| 2 | Disconnect electrical connector (1) for SOS/ATA switch group (S93/3) at overhead control panel control unit (N70) | ||
| 3 | Using a suitable screwdriver, release SOS/ATA switch group (S93/3) at retaining lugs (arrows) | ||
| 4 | Install in the reverse order |
