Remove/install noise damper downstream of charge air cooler - AR09.40-P-6925TI

ENGINE 642 in MODEL 211, 204

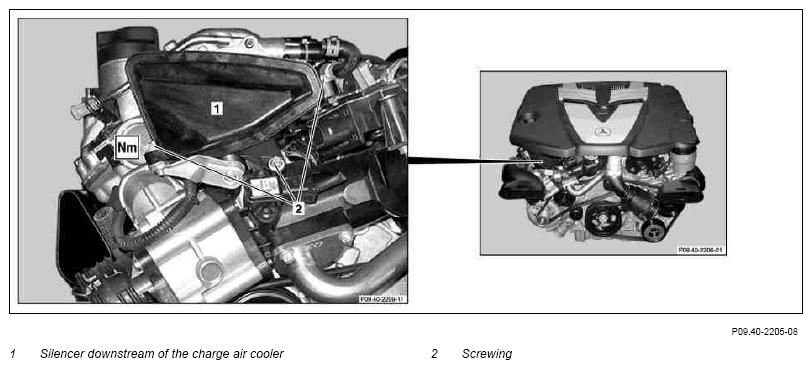

Fig 1: Locating Silencer Downstream of Charge Air Cooler

G07253128

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
1	Remove engine cover	Model 204
1	Remove engine cover	Model 211	AR01.10-P-2405TI
2	Unscrew bolt (2)		*BA09.41-P-1007-01J
3	Remove noise damper downstream of charge air cooler (1)	Installation: Inspect sealing ring for damage and replace if necessary to prevent leaks and damage to the engine.
4	Install in the reverse order

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 642
BA09.41-P-1007-01J	Silencer downstream of charge air cooler to mixing chamber	Nm	9
