Remove/install vehicle power supply control unit - AR54.21-P-0100TX
MODEL 219.3 up to 31.5.06
MODIFICATION NOTES
| 10.8.05 | The operation step "Disconnect ground line of additional battery" is deleted | ||
| Attach a cable bridge from the negative terminal of the battery to vehicle ground is added | 3rd stage |
| Removing | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove trunk floor covering from trunk. | ||
| 2 | Remove spare tire cover or spare tire well trim from the luggage compartment | ||

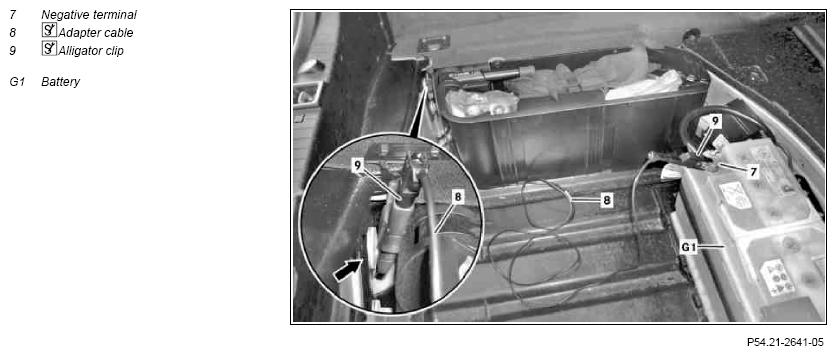

| 3 | Connect negative terminal (7) of battery (G1) by way of adapter line (8) to ground (circuit 31) (arrow) | ||
| Figure | |||

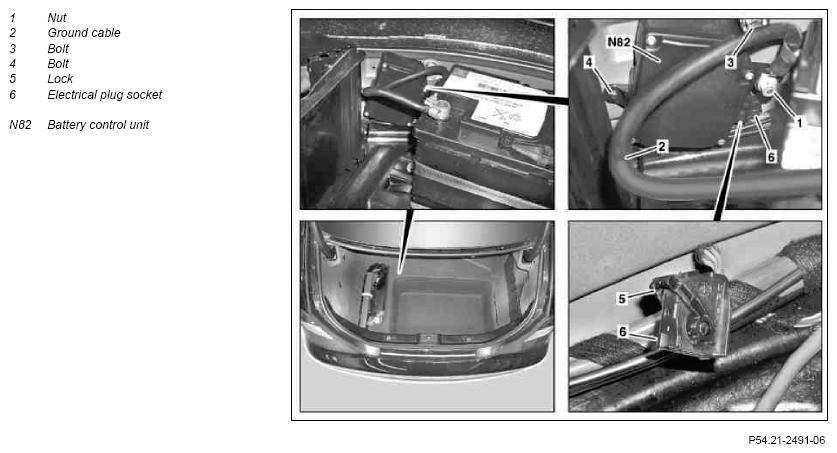

| 4 | Unscrew nut (1) of ground line (2) on battery control unit (N82) and remove ground line (2) | ||
| 5 | Unscrew bolt (3) on battery control unit (N82) | ||
| 6 | Undo bolt (4) on battery control unit (N82) | ||
| 7 | Open lock (5) of electrical plug (6) | ||
| 8 | Separate electrical plug (6) from battery control unit (N82) and remove battery control unit (N82) | ||
| Install | |||
| 9 | Position battery control unit (N82) at installation location and tighten bolt (4) | ||
| 10 | Tighten bolt (3) | *BA54.10-P-1005-01C | |
| 11 | Position ground line (2) on battery control unit (N82) and tighten nut (1) | *BA54.10-P-1004-01C | |
| 12 | Remove adapter line (8) with alligator clips (9) | Figure | |
| 13 | Contact electrical plug (6) on battery control unit (N82) and lock | ||
| 14 | Install spare tire cover or spare tire well trim | ||
| 15 | Insert luggage compartment cover in the luggage compartment |
BATTERY
| Number | Designation | Model 219.3 | ||
|---|---|---|---|---|
| BA54.10-P-1004-01C | Nut, ground lead to battery control unit | M8 | Nm | 11 |
| BA54.10-P-1005-01C | Bolt, battery control unit to body | M8 | Nm | 20 |
