Remove/install cruise control switch - AR54.25-P-2803TX

MODEL 219.3

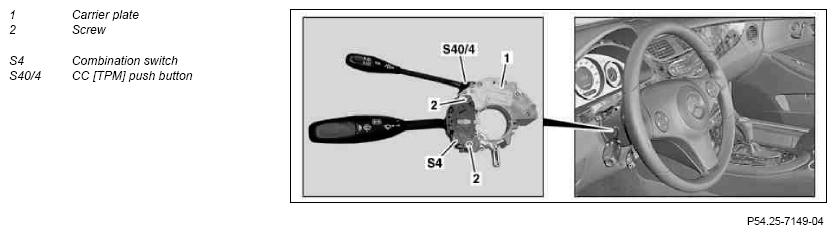

Fig 1: Identifying Cruise Control Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove steering angle sensor		AR46.10-P-0300TX
2	Remove steering column adjustment/steering wheel heater switch	On vehicles with code (275) Memory package (driver seat, steering column, mirrors).	AR46.11-P-0004TX
3	Remove screws (2) and detach combination switch (S4) from carrier plate (1) of CC [TPM] push button (S40/4)
4	Install in the reverse order
5	Carry out function check of cruise control push-button switch (S40/4)
