Fuse and relay box, as-built configuration - GF54.15-P-0800TX

MODEL 219

Location

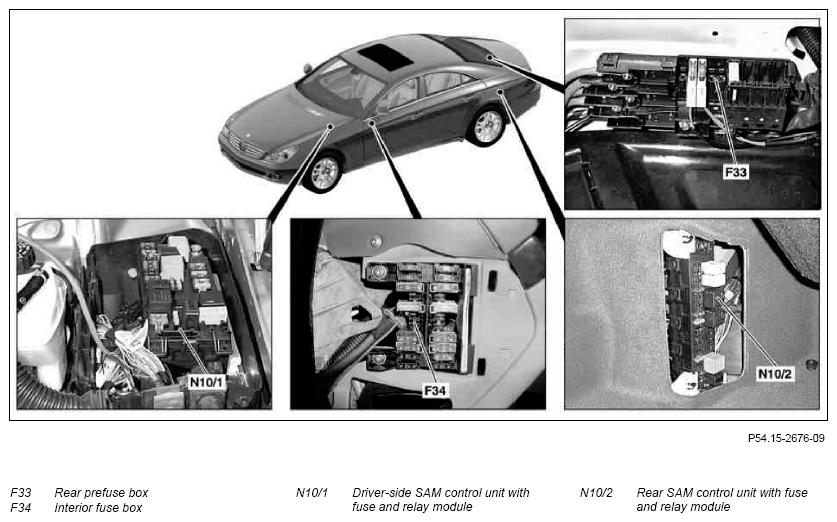

Fig 1: Identifying Fuse And Relay Boxes

Courtesy of MERCEDES-BENZ USA

Location up to and including code 806 Model year 2006

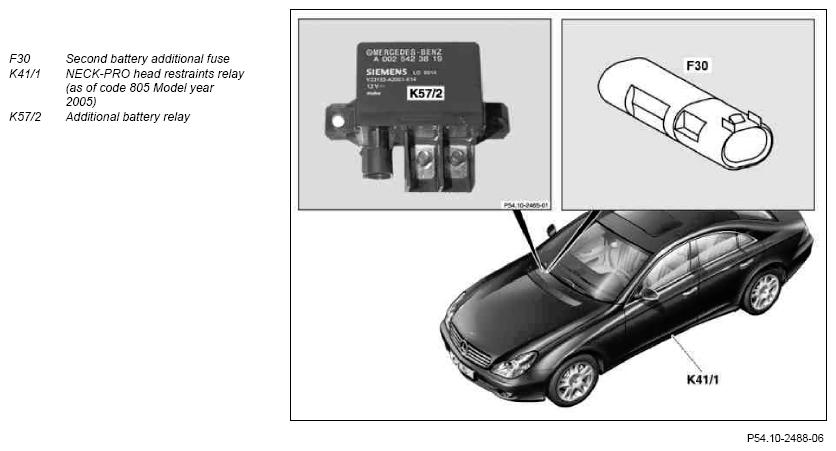

Fig 2: Identifying Second Battery Fuse And Relay

Courtesy of MERCEDES-BENZ USA

The 2nd battery additional fuse is fastened to the wiring loom next to the additional battery (G1/7) and is designed as a circuit breaker (bimetal fuse).

The NECK-PRO head restraints relay is located in the wiring harness of the frame floor group on the driver-side at the entrance.

Location up to and including code 806 Model year 2006

Valid for model 219.376 (CLS 55 AMG) up to and including code 806 Model year 2006

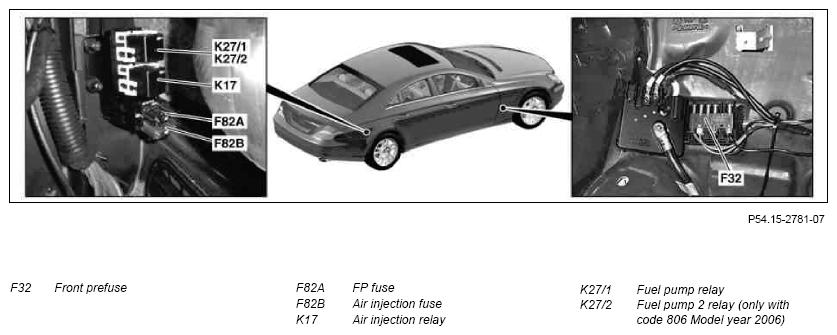

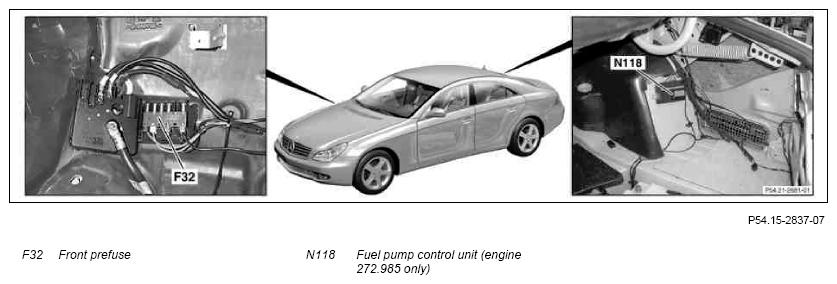

Fig 3: Identifying Front Pre-Fuse And Air Injection Fuse

Courtesy of MERCEDES-BENZ USA

Location as of code 807 Model year 2007

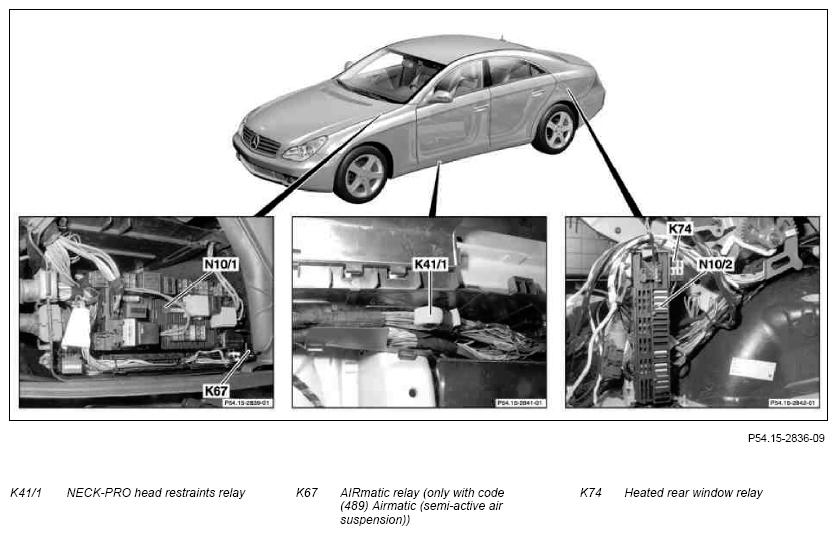

Fig 4: Identifying NECK-PRO Head Restraints Relay

Courtesy of MERCEDES-BENZ USA

Location as of code 807 Model year 2007

Fig 5: Identifying NECK-PRO Head Restraints Relay

Courtesy of MERCEDES-BENZ USA

Location as of code 807 Model year 2007 engine 156.983 (CLS 63 AMG) only

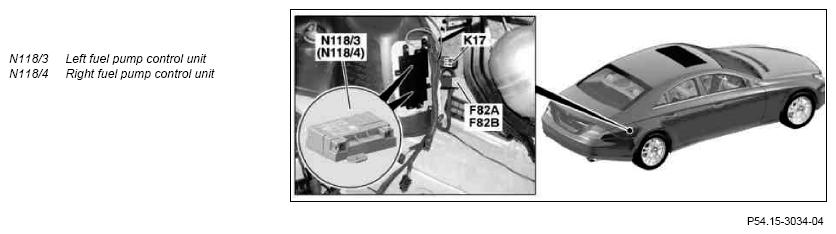

Fig 6: Identifying Left And Right Fuel Pump Control Unit

Courtesy of MERCEDES-BENZ USA

Fuse assignment of fuse and relay box in left engine compartment	Up to and including code (805) Model year 2005	GF54.15-P-1256-03TX
	with code (806) Model year 2006	GF54.15-P-1256-03TXA
	As of code (807) Model year 2007	GF54.15-P-1256-03TXB
Fuse assignment of fuse box in interior compartment on driver's side	Up to and including code (805) Model year 2005	GF54.15-P-1256-04TX
	with code (806) Model year 2006	GF54.15-P-1256-04TXA
	As of code (807) Model year 2007	GF54.15-P-1256-04TXB
Fuse assignment of fuse and relay box in trunk	Up to and including code (805) Model year 2005	GF54.15-P-1256-06TX
	with code (806) Model year 2006	GF54.15-P-1256-06TXA
	As of code (807) Model year 2007	GF54.15-P-1256-06TXB
Fuse assignment of front prefuse box		GF54.15-P-1256-07TX
Fuse assignment of rear prefuse box	Up to and including code (805) Model year 2005	GF54.15-P-1256-08TX
	with code (806) Model year 2006	GF54.15-P-1256-08TXA
	As of code (807) Model year 2007	GF54.15-P-1256-08TXB
Relay assignment of fuse and relay box in left side of engine compartment		GF54.15-P-1257-03TX
Relay assignment of fuse and relay box in trunk		GF54.15-P-1257-04TX
