Cavity preservation following repair work - AR97.20-P-1500Y

MODEL 219 Engine hood

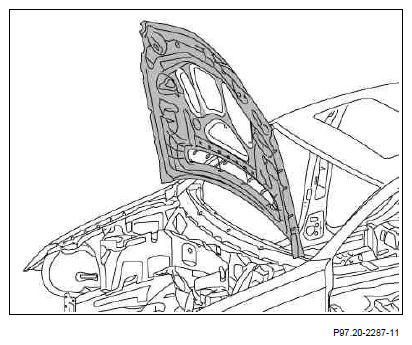

Fig 1: Identifying Engine Hood Repair Work Area

Courtesy of MERCEDES-BENZ USA

Reinforcement in front footwell

Fig 2: Identifying Reinforcement In Front Footwell Repair Work Area

Courtesy of MERCEDES-BENZ USA

Left driver and rear door

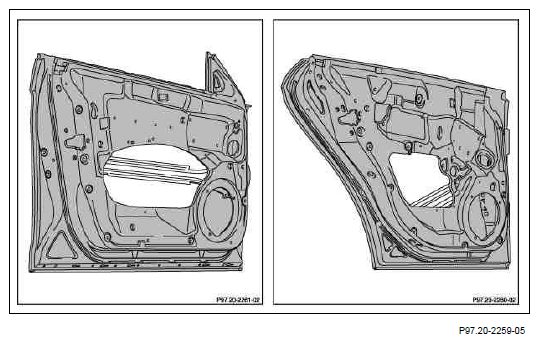

Fig 3: Identifying Left Driver And Rear Door Repair Work Area

Courtesy of MERCEDES-BENZ USA

Rear axle crossmember and below rear seat

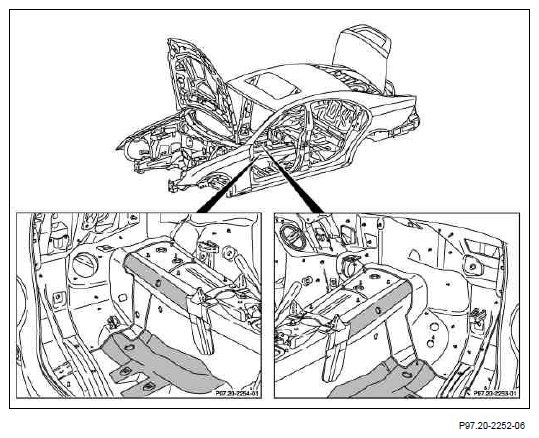

Fig 4: Identifying Rear Axle Crossmember And Below Rear Seat Repair Work Area

Courtesy of MERCEDES-BENZ USA

Rear center section

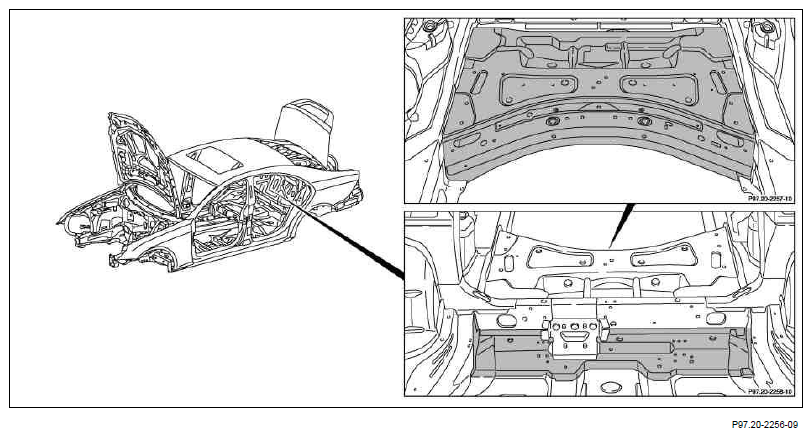

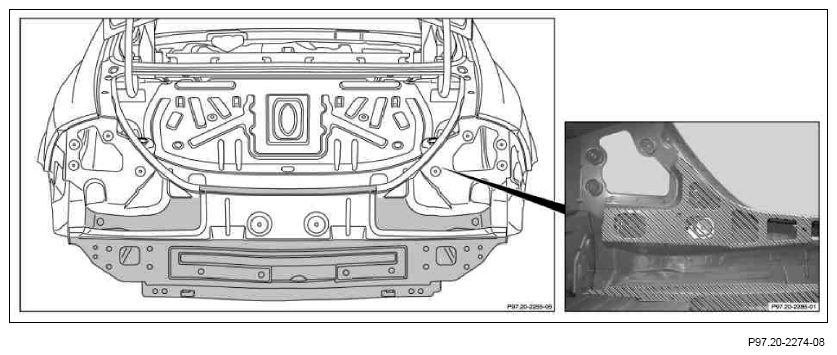

Fig 5: Identifying Rear Center Section Repair Work Area

Courtesy of MERCEDES-BENZ USA

Trunk lid

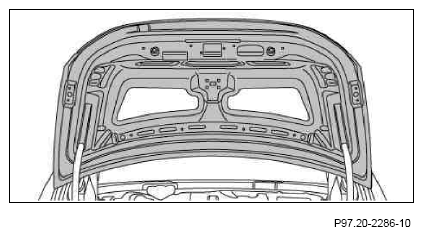

Fig 6: Identifying Trunk Lid Repair Work Area

Courtesy of MERCEDES-BENZ USA

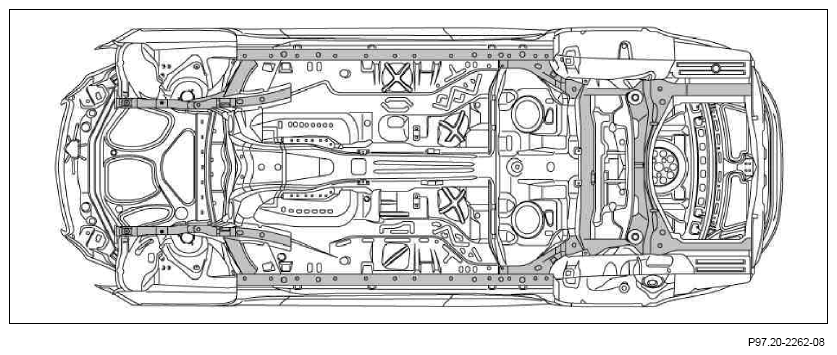

Fig 7: Identifying Entire Underbody Repair Work Area

Courtesy of MERCEDES-BENZ USA

Entire underbody

	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when handling anticorrosion agents.	Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation	Model 124, 126, 129, 140, 168, 169, 170, 171, 201, 202, 203, 208, 209, 210, 211, 215, 219, 220, 230, 240, 463, 639, 671, 690.6, 901, 902, 903, 904, 905 Model WD1, WD2, WD3, WD6, WD7, XD1, XD2, XD3, XD4, XD5, XD6, XD7, YD1, YD2, YD3, YD4, YD5, YD6, YD7	AH97.20-P-0001-01B
1	Perform repair preservation	Apply cavity sealant from inside in crosshatched areas following sealing and paintwork, however, before performing assembly work. Apply repair preservation agent twice after a drying time of 5 minutes in between. The spraying hose should be stiff and the nozzles should spray at angle to the front and rear. The cavities should be dry. Insert spray hoses as far as possible into cavities. Spray while inserting and pulling out slowly.
	Processing instructions for cavity preservation agent		AP97.20-P-0640-01Y
	Cavity protection, general		GF98.00-P-2045A
		Combination pressure spray gun (corrosion protection)
		MB cavity wax preservation, 1l	*BR00.45-Z-1003-05A
2	Remove cavity sealant from drain holes	The processing temperature should not be less than 15°C. Additional preservation measures may be required, depending on the repair area, deviating from the standard cavity preservation shown.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity sealant, solvent-free (1 l container)	A 000 986 72 70 05
