Remove/install center paneling in trunk - AR68.30-P-4810TX

MODEL 219.3

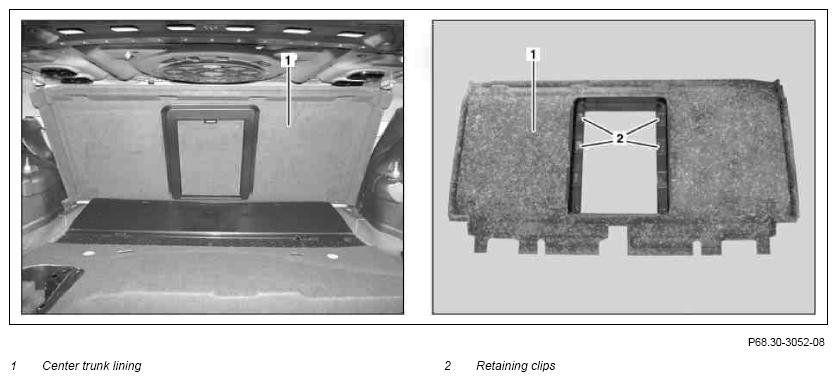

Fig 1: Identifying Center Paneling In Trunk Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removal/installation
1	Remove left and right side paneling in trunk		AR68.30-P-4800TX
2	Pull center trunk lining (1) upward toward rear in area of through-loading opening and loosen	Ensure that center trunk lining (1) is seated correctly in area of through- loading opening.
3	Remove and install center trunk lining (1) upward from trunk	Ensure that retaining clips (2) are seated correctly on rear of center trunk lining (1). Observe installation position of center trunk lining (1) in lower area.
4	Install in the reverse order
