Remove/install rear bumper - AR88.20-P-2200TX
MODEL 219.3
Shown on vehicle with code (433) Left dynamic seat, including multicontour seat or code (434) Right dynamic seat including multicontour seat
| Remove/Install | |||
| 1 | Remove left side paneling in trunk | AR68.30-P-4800TX | |
| 2 | Partially loosen right side paneling in trunk (19) and fold over | ||

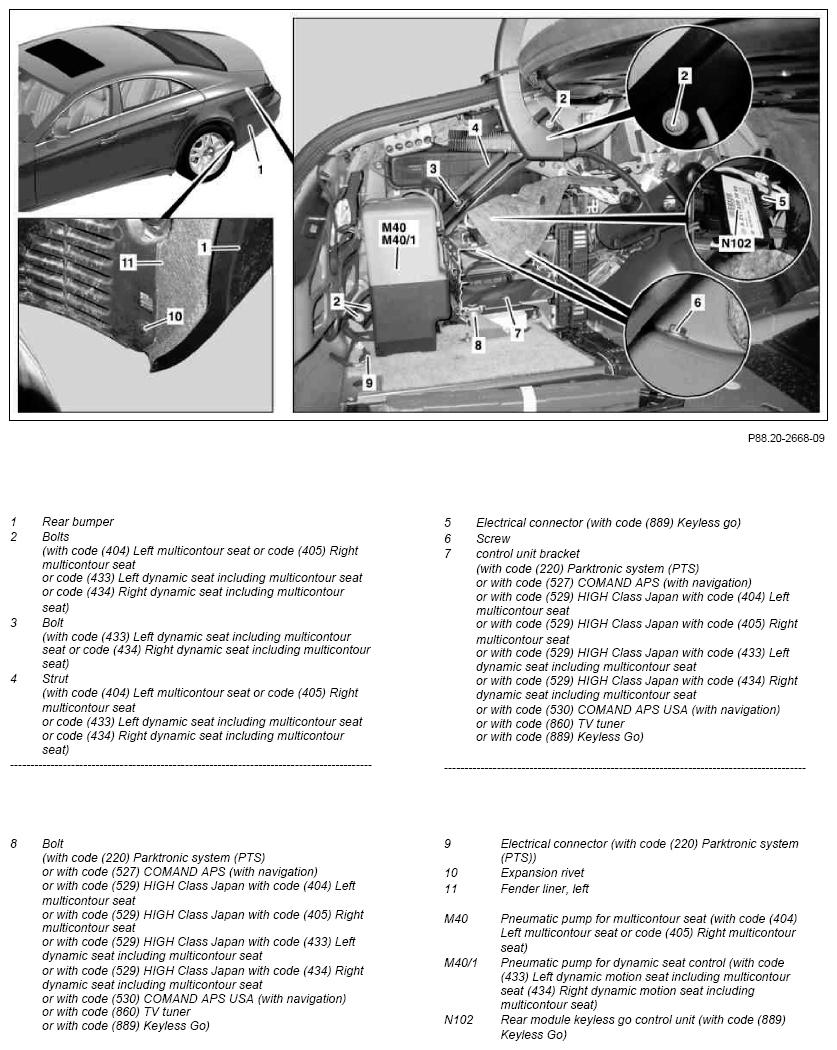

| 3.1 | Remove pneumatic pump for multicontour seat (M40) from strut (4) and lay down to side with lines connected. | Only with code (404) Left multicontour seat or code (405) Right multicontour seat | |
| 4.1 | Remove dynamic seat control pneumatic pump (M40/1) from strut (4) and lay down to side with lines connected. | Only with code (433) Left dynamic seat including multicontour seat or code (434) Right dynamic seat including multicontour seat | |
| 5.1 | Unscrew bolt (3) from strut (4) | Only with code (433) Left dynamic seat including multicontour seat or code (434) Right dynamic seat including multicontour seat | |
| 6.1 | Loosen bottom bolts (2), unscrew upper bolts (4) and pivot strut (4) at top toward rear | Only with code (404) Left multicontour seat or code (405) Right multicontour seat or code (433) Left dynamic seat including multicontour seat or code (434) Right dynamic seat including multicontour seat | |
| 7.1 | Unscrew bolt (8) and pivot control unit bracket (7) toward front. | Only with code (220) Parktronic system (PTS) or with code (527) COMAND APS (with navigation) or with code (529) HIGH Class Japan with code (404) Left multicontour seat or with code (529) HIGH Class Japan with code (405) Right multicontour seat or with code (529) HIGH Class Japan with code (433) Left dynamic seat including multicontour seat or with code (529) HIGH Class Japan with code (434) Right dynamic seat including multicontour seat or with code (530) COMAND APS USA (with navigation) or with code (860) TV tuner or with code (889) Keyless Go |
|
| 8.1 | Disconnect electrical connector (5) from rear module keyless go control unit (N102) | Only with code (889) Keyless Go | |
| 9.1 | Disconnect electrical connector (9) from rear center section on inside | Only with code (220) Parktronic system (PTS) | |
| 10 | Unscrew bolt (6) in left fender | ||
| 11 | Remove expansion rivet (10) from left fender liner (11) | ||
| 12 | Loosen left fender liner (11) from fender until bolt (12) is accessible with mounting wedge | Figure | |
| 13 | Unscrew bolt (12) from left fender | ||

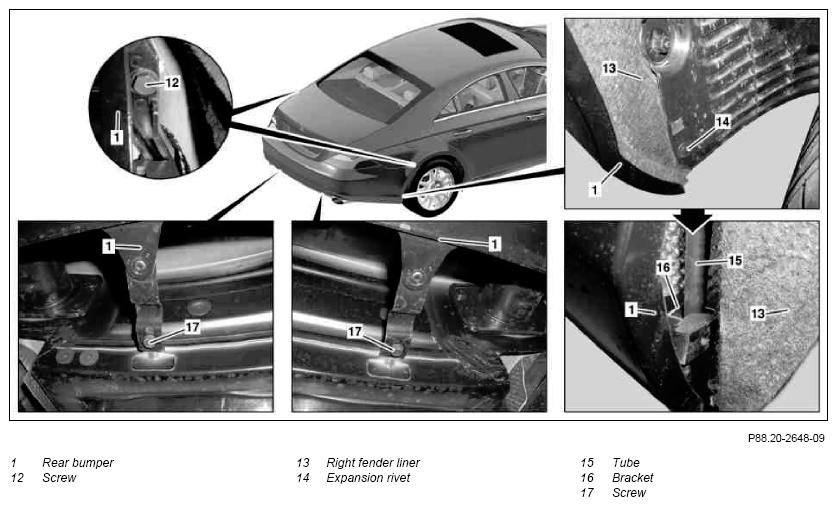

| 14 | Remove expansion rivet (14) from right fender liner (13) | ||
| 15 | Completely loosen fender liner (13) in area of rear bumper (1) with mounting wedge | Figure | |
| 16 | Unscrew bolt (12) from right fender | ||
| 17 | Remove hose (15) from bracket (15) on rear bumper (1) | ||

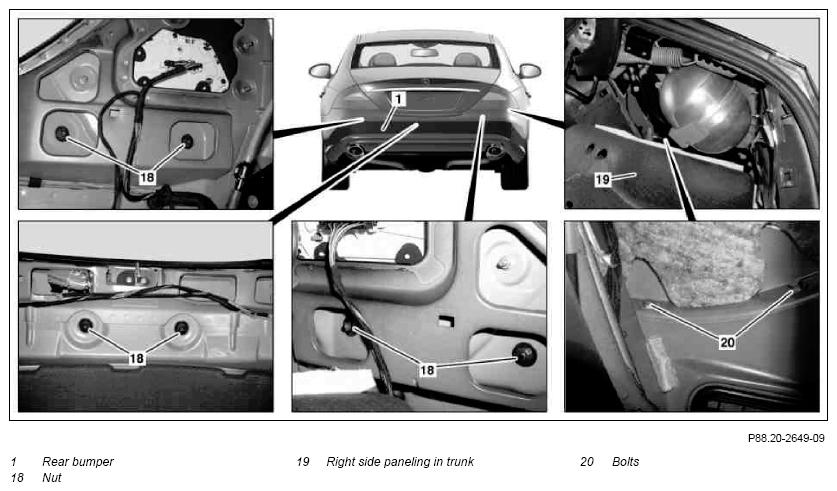

| 18 | Unscrew bolts (17) outside of rear center section | ||
| 19 | Unscrew bolts (20) in right fender | ||
| 20 | Unscrew nuts (18) inside of rear center section | ||

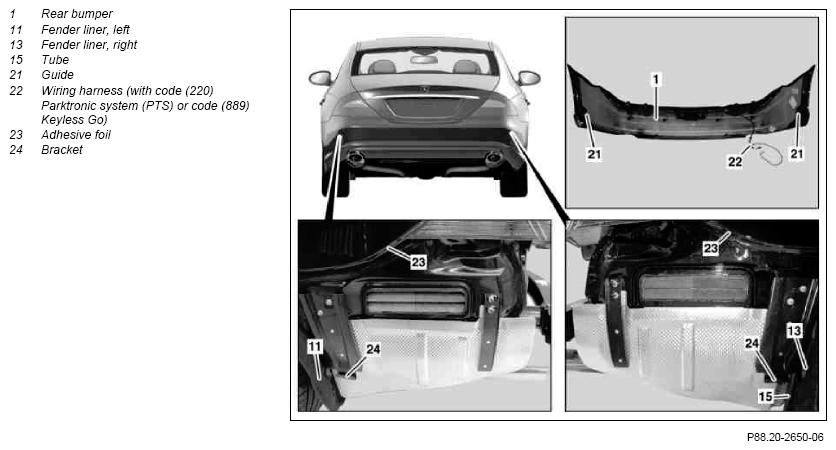

| 21 | Remove rear bumper (1) with aid of helper | ||
| 22.1 | Install wiring harness (22) through opening in rear center section | Only with code (220) Parktronic system (PTS) or code (889) Keyless Go | |
| 23 | Install in the reverse order |
