Remove/install fender liner in rear fender - AR88.10-P-1400TX

MODEL 219.3

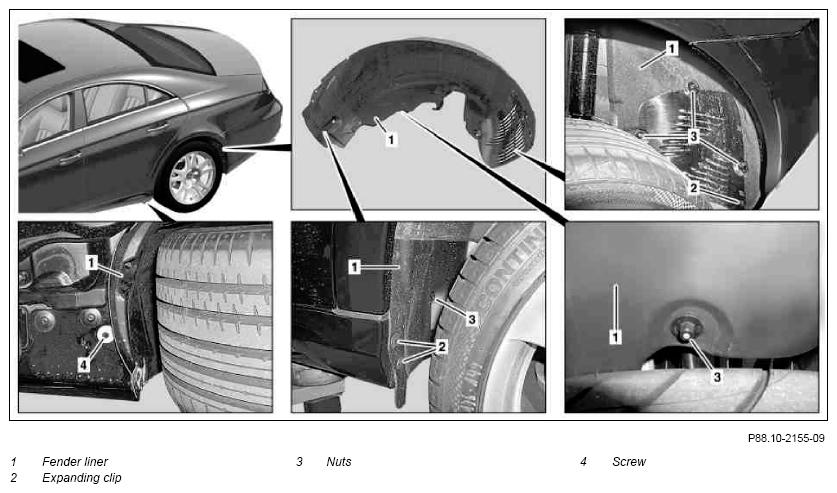

Fig 1: Identifying Fender Liner In Rear Fender Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Raise vehicle.		AR00.60-P-1000TX
2	Remove expansion clips (2)
3	Unscrew nuts (3).
4	Unscrew screw (4)
5	Remove fender liner (1) from rear fender	Ensure that fender liner (1) is seated correctly.
6	Install in the reverse order
