Remove/install wiper system - AR82.30-P-6400TX

MODEL 219.3

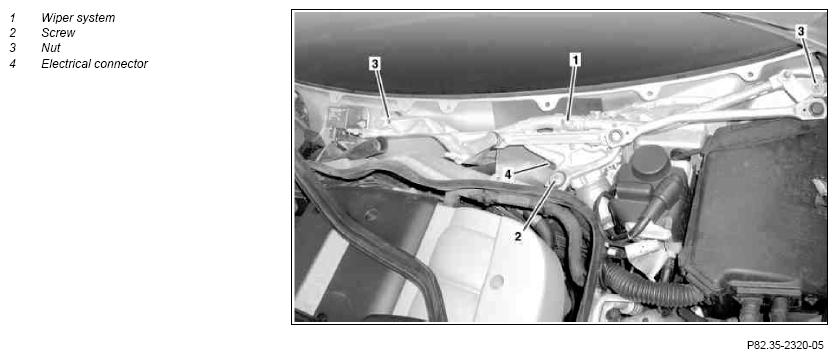

Fig 1: Identifying Wiper System Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove water collector		AR83.25-P-1402TX
2	Unscrew bolt (2) from bracket of wiper system (1)	Do not change the installation position of the bracket of the wiper system (1) on the partition wall as the contact pressure of the wiper arms changes and thus the wiper arms.
			*BA82.30-P-1003-01I
3	Unscrew nut (3) on both sides		*BA82.30-P-1002-01I
4	Lift wiper system (1) and disconnect electrical connector (4) from wiper motor
5	Remove wiper system (1)
6	Install in the reverse order
7	Perform function test of wiper system (1)

WINDSHIELD WIPER

Number	Designation			Model 219.3
BA82.30-P-1002-01I	Nut, wiper system to body	M8	Nm	19
BA82.30-P-1003-01I	Bolt, wiper system to bracket	M8	Nm	11
