Remove/install vehicle interface (cell phone) - AR82.70-P-8920TX
MODEL 219.3 up to 2.3.08 except CODE (809) Model year 2009 with CODE (386) Preinstallation for telephone "Cell phone" UPCI [UHI] system with CODE (388) Telephone "Cell phone" UPCI [UHI] system
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/Install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Stage basic data of the Universal Cell phone Interface (UPCI [UHI]) control unit (N123/1) in STAR DIAGNOSIS | When replacing Universal Portable Cell Phone Interface (UPCI [UHI]) control unit (N123/1). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04TX | ||

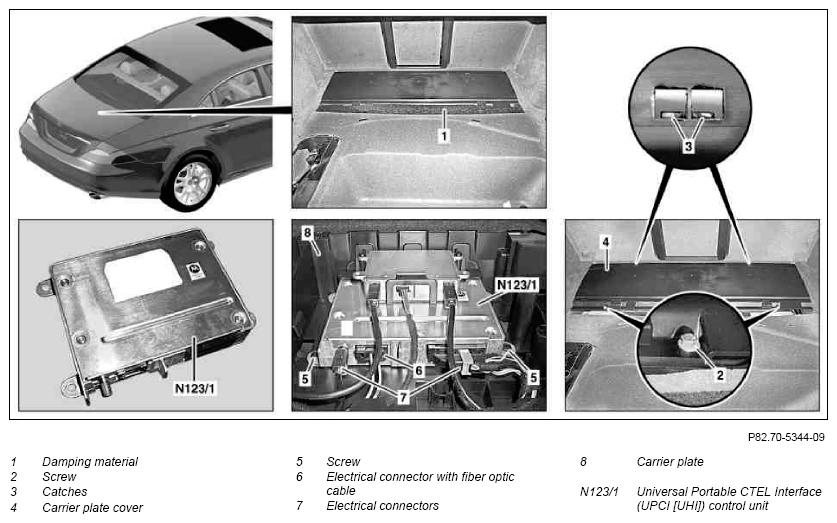

| 2 | Remove soundproofing (1) | ||
| 3 | Remove bolts (2) | ||
| 4 | Release catches (3) using a suitable screwdriver and remove carrier plate cover (4) | ||
| 5 | Remove compensator control unit at Universal Portable Cell Phone Interface (UPCI [UHI]) control unit (N123/1) | AR82.70-P-0030TX | |
| 6 | Remove bolts (5) | ||
| 7 | Disconnect electrical connector with fiber optic cable (6) | ||
| Notes on avoiding damage to fiber optic cables during repair work | With Media Oriented System Transport (MOST) | AH82.60-P-0001-05TX | |
| 8 | Disconnect electrical connectors (7) and take Universal Cell phone Interface (UPCI [UHI]) control unit (N123/1) off carrier plate (8) | ||
| 9 | Install in the reverse order |
