Remove/install rear axle level sensor - AR82.10-P-0005TX
MODELS 219.3 with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
| Remove/Install | |||

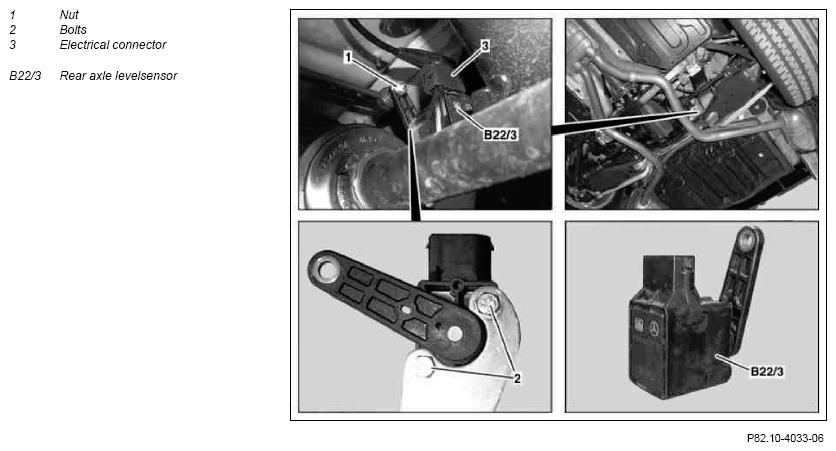

| 1 | Raise vehicle with lifting platform | AR00.60-P-1000TX | |
| 2 | Unscrew nut (1) | ||
| 3 | Unscrew bolts (2) | ||
| 4 | Disconnect electrical connector (3) and remove rear axle level sensor (B22/3) | ||
| 5 | Install in the reverse order | ||
| 6 | Check the adjustment of the left front lamp unit and the right front lamp unit, correct if necessary. | ||
| Check and correct headlamp setting | AP82.10-P-8260TX |
