Remove/install radio - AR82.60-P-7502TX
MODEL 219.3 up to 2.3.08 except CODE (809) Model year 2009 with CODE (523) MB Audio 20 radio with CODE (525) MB Audio 50 APS radio

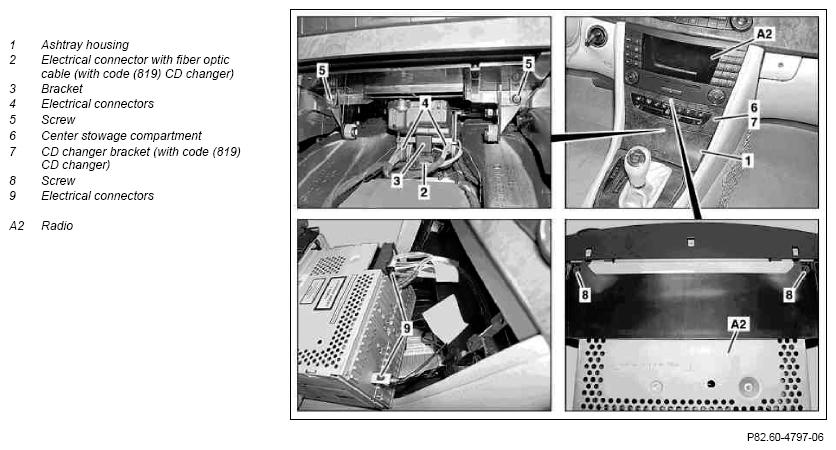

Shown with code (523) MB Audio 20 radio
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Buffer basic data of radio (A2) in Star Diagnosis | When replacing the radio (A2). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04TX | ||
| 2 | Remove ashtray housing (1) from front center console | AR68.20-P-2400TX | |
| 3 | Unclip electrical connector with fiber optic cable (2) toward the front out of the bracket (3) | On vehicles with code (819) CD-changer | |
| Notes on avoiding damage to fiber optic cables during repair work | With Media Oriented System Transport (MOST) | AH82.60-P-0001-05TX | |
